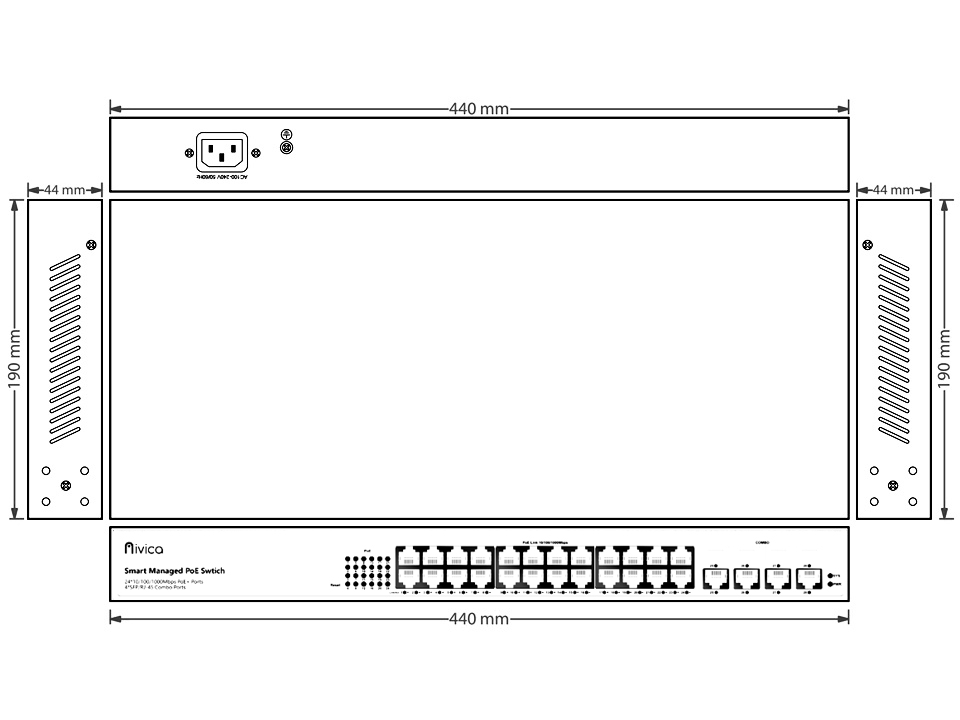

Diagram
PoE Switch
NV-SW-2824PG-M-4CU
EAN: 5904708319950
Smart Managed Gigabit PoE Switch (24x PoE Gigabit + 4x Combo SFP/RJ45 Gigabit)
Key Features
■ 24 10/100/1000Mbps PoE ports and 4 1000M Combo uplink ports (SFP+RJ45)
■ High performance with a switching capacity of 56Gbps and a forwarding rate of 41.664Mpps
■ Advanced QoS features (Diff-Serv, 8 output queues per port, broadcast storm suppression)
■ Comprehensive security mechanisms including port isolation, loop protection, and 6KV lightning protection
■ Web-based management with HTTPS support, one-click restoration function, and cable status diagnostics.
The Nivica NV-SW-2824PG-M-4CU is a professional network switch characterized by a packet forwarding rate of 41.664Mpps, an 8K MAC address table, and 4M buffer memory.
The device is equipped with 24 Ethernet ports featuring automatic 10/100/1000Base-T(X) detection and MDI/MDI-X adaptation in full/half duplex mode, as well as 4 1000M Combo uplink ports combining SFP and RJ45 sockets (fiber modules are not included and must be ordered separately, with single/multi-mode, single/dual fiber, LC options). With dimensions of 440 * 190 * 44 mm and a weight of 3.3 kg, the design is housed in an IP40-rated enclosure providing lightning protection up to 6KV (8/20us) and complying with rigorous IEC standards for surge, ESD, and electromagnetic field resistance, as confirmed by numerous indicator lights for Link/Act ports, PoE, power supply, and system operation.
From the perspective of the installer and user, the switch guarantees high flexibility in network topology design and constant infrastructure monitoring thanks to dedicated status LEDs for each of the 28 Link/Act ports and 24 PoE ports.
The device supports port-based IEEE 802.1Q VLAN configuration (supporting 4K ports), static port aggregation, loop protection, and advanced multicast traffic handling using IGMP Snooping v1/v2 supporting up to 256 groups.
High mechanical and electrical reliability enables trouble-free operation across a wide operating temperature range from -20 to 55°C and relative air humidity from 10% to 90% non-condensing, while certifications such as CCC, CE (including CE/LVD EN60950), FCC Part 15 Class B, and RoHS confirm full safety of use in commercial and industrial environments.
The network administrator is provided with an intuitive Web management panel featuring secure HTTPS protocol support, a quick one-click settings restoration function, and a built-in cable status check mechanism.
The switch offers extensive full-duplex flow control options (IEEE802.3x), EEE (Energy Efficient Ethernet) energy-saving functions, DHCP Snooping, as well as detailed configuration of traffic statistics, port speeds, port mirroring, and QoS traffic prioritization (Diff-Serv, 8 output queues per port, 802.1p/DSCP priority mapping, and broadcast storm suppression). The device is powered by AC 100~240V (50-60Hz), consuming less than 10W in standby mode and under 300W at full PoE load.
■ High performance with a switching capacity of 56Gbps and a forwarding rate of 41.664Mpps
■ Advanced QoS features (Diff-Serv, 8 output queues per port, broadcast storm suppression)
■ Comprehensive security mechanisms including port isolation, loop protection, and 6KV lightning protection
■ Web-based management with HTTPS support, one-click restoration function, and cable status diagnostics.
The Nivica NV-SW-2824PG-M-4CU is a professional network switch characterized by a packet forwarding rate of 41.664Mpps, an 8K MAC address table, and 4M buffer memory.
The device is equipped with 24 Ethernet ports featuring automatic 10/100/1000Base-T(X) detection and MDI/MDI-X adaptation in full/half duplex mode, as well as 4 1000M Combo uplink ports combining SFP and RJ45 sockets (fiber modules are not included and must be ordered separately, with single/multi-mode, single/dual fiber, LC options). With dimensions of 440 * 190 * 44 mm and a weight of 3.3 kg, the design is housed in an IP40-rated enclosure providing lightning protection up to 6KV (8/20us) and complying with rigorous IEC standards for surge, ESD, and electromagnetic field resistance, as confirmed by numerous indicator lights for Link/Act ports, PoE, power supply, and system operation.
From the perspective of the installer and user, the switch guarantees high flexibility in network topology design and constant infrastructure monitoring thanks to dedicated status LEDs for each of the 28 Link/Act ports and 24 PoE ports.
The device supports port-based IEEE 802.1Q VLAN configuration (supporting 4K ports), static port aggregation, loop protection, and advanced multicast traffic handling using IGMP Snooping v1/v2 supporting up to 256 groups.
High mechanical and electrical reliability enables trouble-free operation across a wide operating temperature range from -20 to 55°C and relative air humidity from 10% to 90% non-condensing, while certifications such as CCC, CE (including CE/LVD EN60950), FCC Part 15 Class B, and RoHS confirm full safety of use in commercial and industrial environments.
The network administrator is provided with an intuitive Web management panel featuring secure HTTPS protocol support, a quick one-click settings restoration function, and a built-in cable status check mechanism.
The switch offers extensive full-duplex flow control options (IEEE802.3x), EEE (Energy Efficient Ethernet) energy-saving functions, DHCP Snooping, as well as detailed configuration of traffic statistics, port speeds, port mirroring, and QoS traffic prioritization (Diff-Serv, 8 output queues per port, 802.1p/DSCP priority mapping, and broadcast storm suppression). The device is powered by AC 100~240V (50-60Hz), consuming less than 10W in standby mode and under 300W at full PoE load.
Technical Parameters
PoE Port
24x 1Gbps (PoE)
PoE Standard
802.3af/at
PoE Budget
400W
RJ45 Uplink Port
4x Combo (RJ45/SFP)
SFP / SFP+ Port
4x Combo (RJ45/SFP)
Bandwidth
56 Gbps
Management
Managed (L2)
Power Supply
100-240V AC
Power Consumption
< 15W (bez PoE)
Features
VLAN, QoS, IGMP, SNMP
Enclosure
1U Rackmount
Full specifications
| Model | NV-SW-2824PG-M-4CU |
| PoE Ports | 24*10/100/1000Mbps |
| Uplink Ports | 4*1000M Combo (SFP+RJ45) |
| Switching Capacity | 56Gbps |
| Forwarding Rate | 41.664Mpps |
| MAC Address Table | 8K |
| Buffer Memory | 4M |
| Power Consumption | Standby: <10W; Full load: <300W |
| Power Supply | AC 100~240V 50-60Hz |
| Indicator light | 28* Link/Act Indicator light; 24* PoE Indicator Light; Power input indicator light; System operation indicator light. |
| Dimension | 440 * 190 * 44 mm |
| Net/Gross Weight | 3.3 kg |
| Ethernet Port Feature | 10/100/1000Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive. |
| Fiber Port Feature | Gigabit SFP Port (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC) |
| Operation TEMP / Humidity | -20~55°C; 10%~90% RH non condensing |
| Storage TEMP / Humidity | -40~+70°C; 10%~90% RH non condensing |
| Protection | Lightning protection: 6KV 8/20us; Protection level: IP40; IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge; IEC61000-4-3(RS): 10V/m(80-1000MHz); IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV; IEC61000-4-5(Surge): power cable: CM±4kV/DM±2kV, data cable: ±4kV; IEC61000-4-6(radio frequency transmission): 10V(150kHz-80MHz); IEC61000-4-8(power frequency magnetic field): 100A/m; 1000A/m, 1s to 3s; IEC61000-4-9(pulsed magnet field): 1000A/m; IEC61000-4-10(damped oscillation): 30A/m 1MHz; IEC61000-4-12/18(shockwave): CM 2.5kV, DM 1kV; IEC61000-4-16(common-mode transmission): 30V; 300V, 1s; FCC Part 15/CISPR22(EN55022): Class A; IEC61000-6-2(Common Industrial Standard). |
| Certification | CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B RoHS. |
| Port management | Supports port status display Supports port traffic statistics Supports duplex/fixed rate configuration for ports Supports IEEE802.3x Flow control configuration (full duplex) Supports EEE energy-saving and green Ethernet functions |
| VLAN | Supports port-based IEEE 802.1Q VLAN configuration (4K ports) |
| Port aggregation | Support static aggregation |
| Loop protection | Support loop protection |
| Multicast | Support IGMP Snooping v1/v2 and it can support up to 256 multicast groups. |
| Port Mirroring | Support basic port traffic mirroring |
| QoS | Support Diff-Serv QoS Each port supports 8 output queues Support 802.1p/DSCP priority mapping Support priority marking Mark/Remark Support for broadcast storm suppression Support for port speed limiting |
| Security feature | Support for port isolation |
| Management and Maintenance | Supports Web network management (supports HTTPS) Supports one-click restoration Supports cable status check |
| DHCP | Enable DHCP Snooping |
