NV-SW-2724P-XE-2GU1SU

■ 24 Fast Ethernet PoE ports (IEEE802.3af/at) supporting standard power supply and increased power up to 60W on ports 21-24.
■ AI Extend function providing data and PoE power transmission up to 300 meters with speed limited to 10 Mbps.
■ AI VLAN function and port isolation (1-24) enabled via DIP switch to enhance transmission security.
■ AI-PoE Network auto restart function (PoE Watchdog) automatically resolving issues with frozen cameras and reducing service costs.

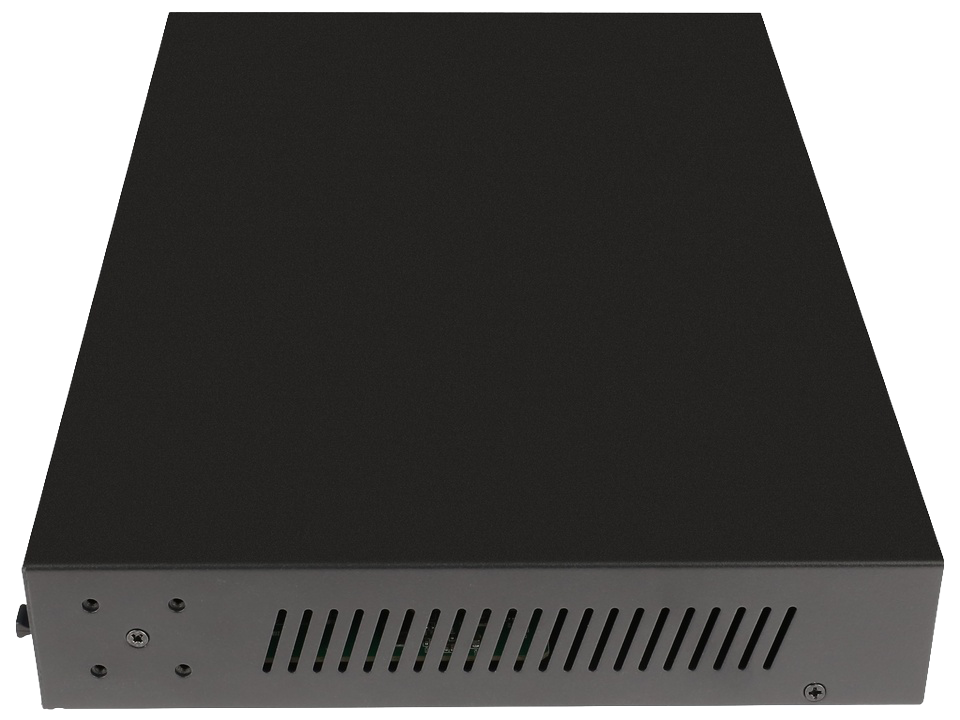

■ Fanless design (Non-Fan) guaranteeing quiet device operation with a high switching performance of 10.8 Gbps.

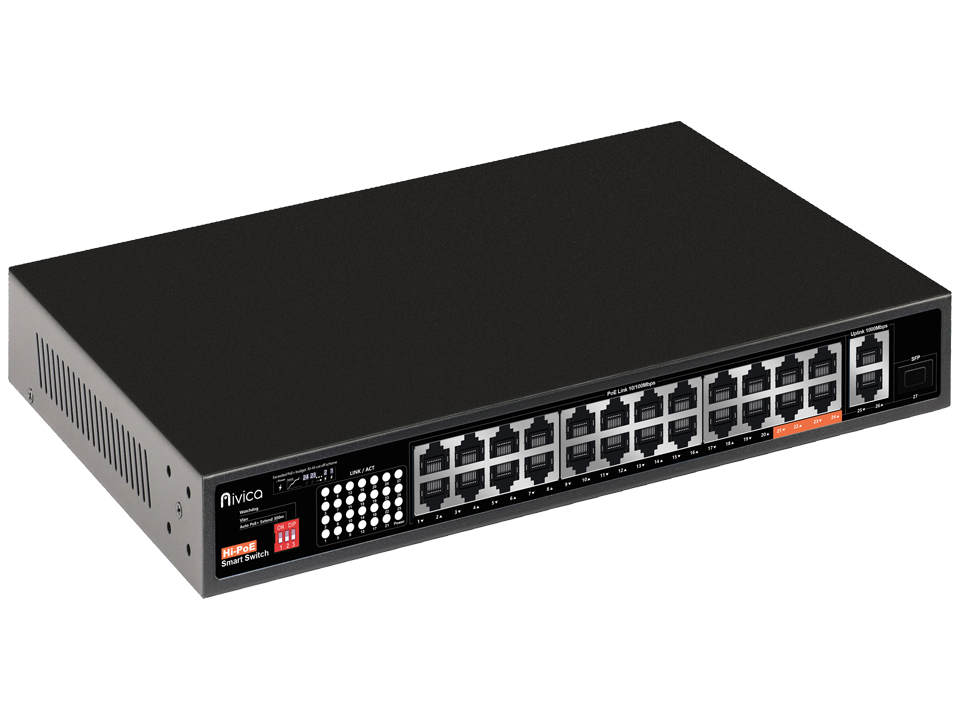

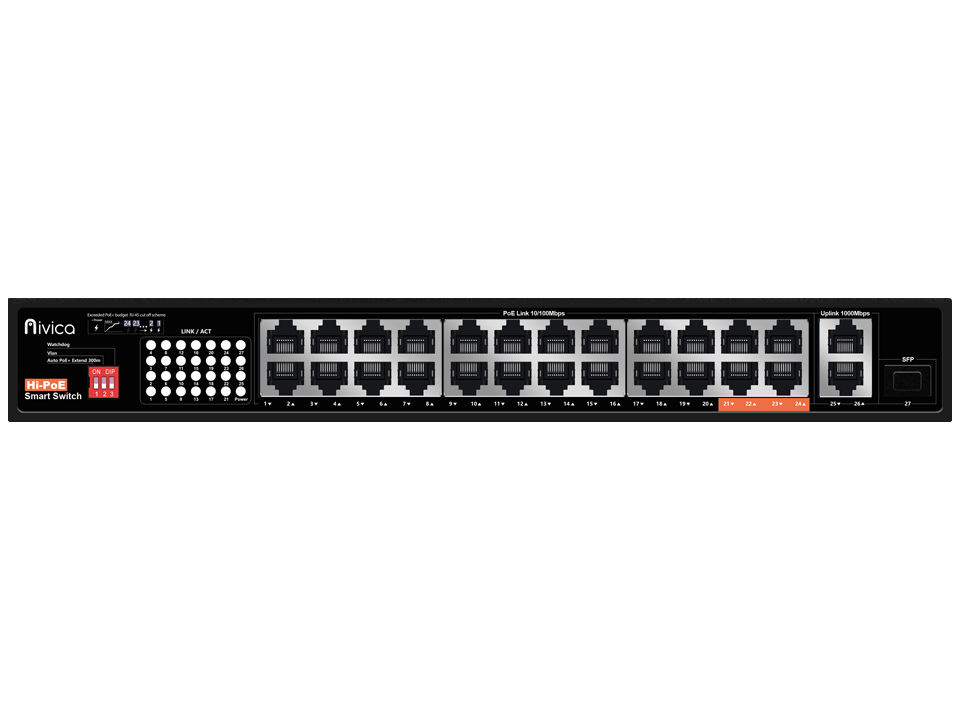

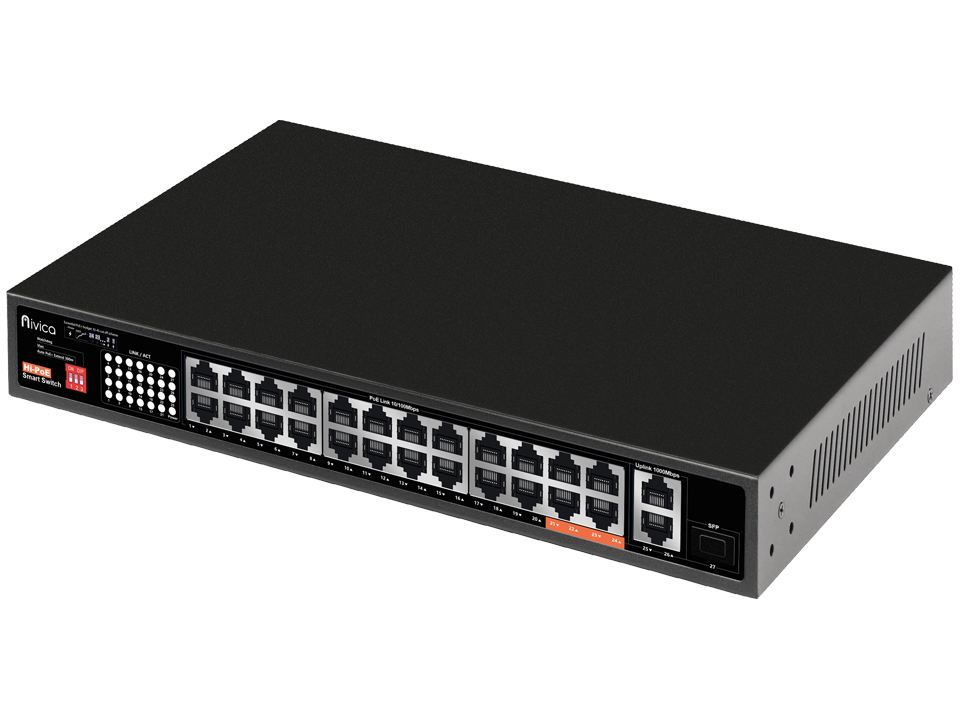

Nivica NV-SW-2724P-XE-2GU1SU is an advanced network switch based on the Store and Forward architecture, featuring a total of 27 ports, including 24 10/100Base-TX PoE (Data/Power) ports, 2 10/100/1000Base-T RJ45 (Data) ports, and 1 100/1000Base-X SFP uplink fiber slot (Data). The device achieves a switching capacity of 10.8 Gbps (non-blocking), a forwarding rate of 8.05 Mpps, an 8K MAC address table, and a 4M buffer memory.

The switch fully supports network protocols IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, and IEEE802.3x, ensuring full compatibility and stability in modern transmission installations.

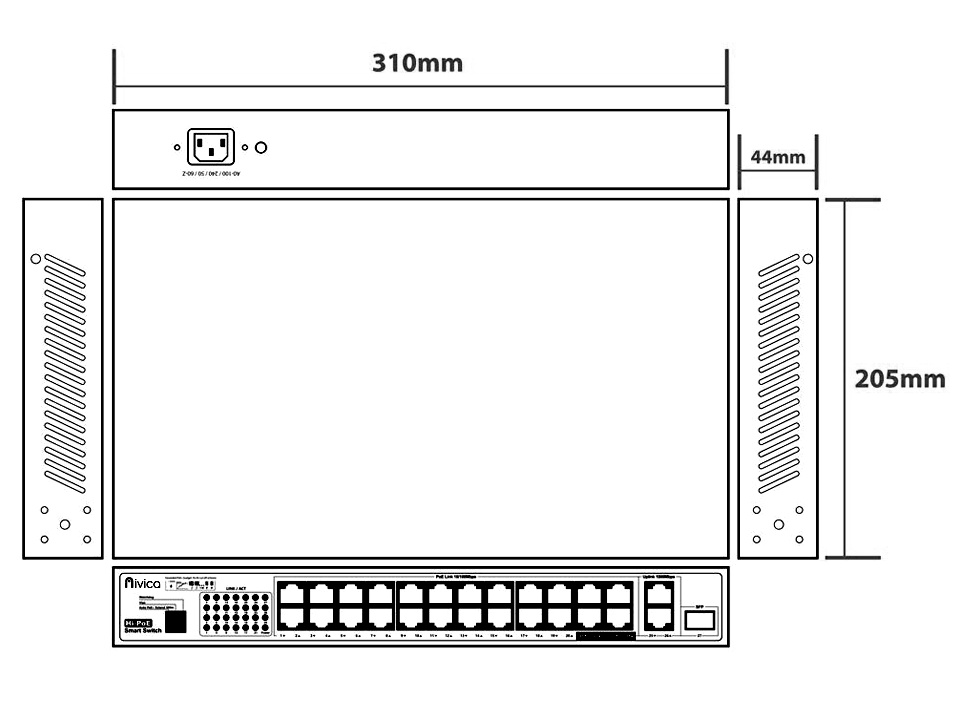

From the perspective of the installer and user, this model features flexible mounting methods – it can be installed on a desktop, wall-mounted, or in a 19-inch 1U rack cabinet, with compact dimensions of 310 x 205 x 44 mm and a weight of less than 3 kg.

Ports 1-24 support the IEEE802.3af/at PoE standard, with ports 1-20 delivering a maximum of 30W (average 15.4W) and ports 21-24 offering power up to 60W (average 15.4W) with default pin assignment 1/2(+) and 3/6(-). The device is powered by a built-in switching power supply AC100-240V 50-60Hz (4.1A), offering a total power budget of 300W, low standby power consumption (<5W), and full surge and discharge protection (IEC61000-4-2 ESD up to ±15kV, IEC61000-4-5 Surge up to ±4kV) while maintaining an IP30 ingress protection level and stable operation at temperatures from -20 to +55°C. Management of operating modes and special device functions is carried out via a hardware DIP switch, which by default supports port prioritization and enables the activation of modes 'E', 'V', and 'D'. Mode 'E' (AI Extend) initiates transmission up to 300 meters with an automatic speed change to 10 Mbps on a single port, while other ports maintain 100M/1000M speeds within a distance of 100 meters (using Cat5 UTP twisted pair for 10BASE-T up to 300m and Cat5 or later for 100BASE-TX/1000BASE-T up to 100m). Mode 'V' activates port isolation for ports 1-24 and the VLAN function, while mode 'D' activates the AI-PoE network auto restart mode (PoE Watchdog), automatically resolving camera issues and reducing after-sales service costs.

The package is complemented by silent operation in Non-Fan mode and numerous certifications (CCC, CE, CE/LVD EN60950, FCC Part 15 Class B, RoHS), making the device a professional and reliable element of network infrastructure.
