NV-SW-2016PG-XE-2GU2SU

■ 16 gigabit PoE/PoE+ ports compliant with the IEEE802.3af/at standard with a maximum power of up to 30W per port
■ 4 uplink ports including 2 gigabit RJ45 ports and 2 SFP 100/1000Mbps fiber slots
■ EVD function controlled by a DIP switch (AI Extend up to 300 m, port isolation & VLAN, and automatic PoE watchdog)
■ High data transmission performance with a 40 Gbps switching capacity and a packet forwarding rate of 29.76 Mpps

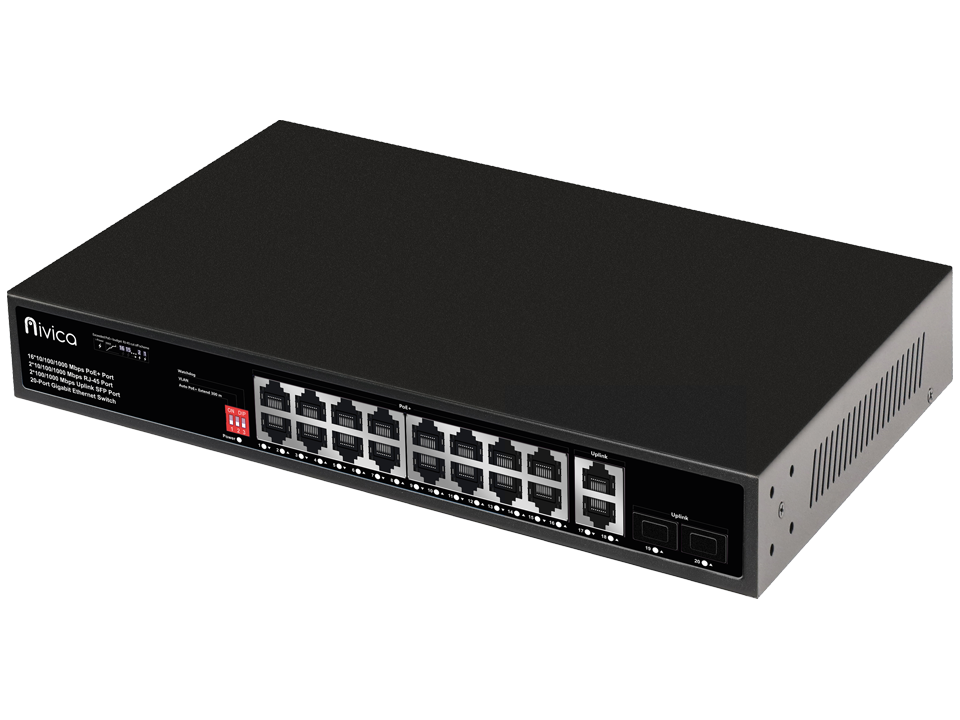

■ Rugged, compact IP30-rated enclosure with advanced surge protection and versatile mounting (desktop, wall mount, 1U rack mount). Nivica NV-SW-2016PG-XE-2GU2SU is an advanced, hardware-managed network switch designed for reliable video surveillance installations and LAN networks.

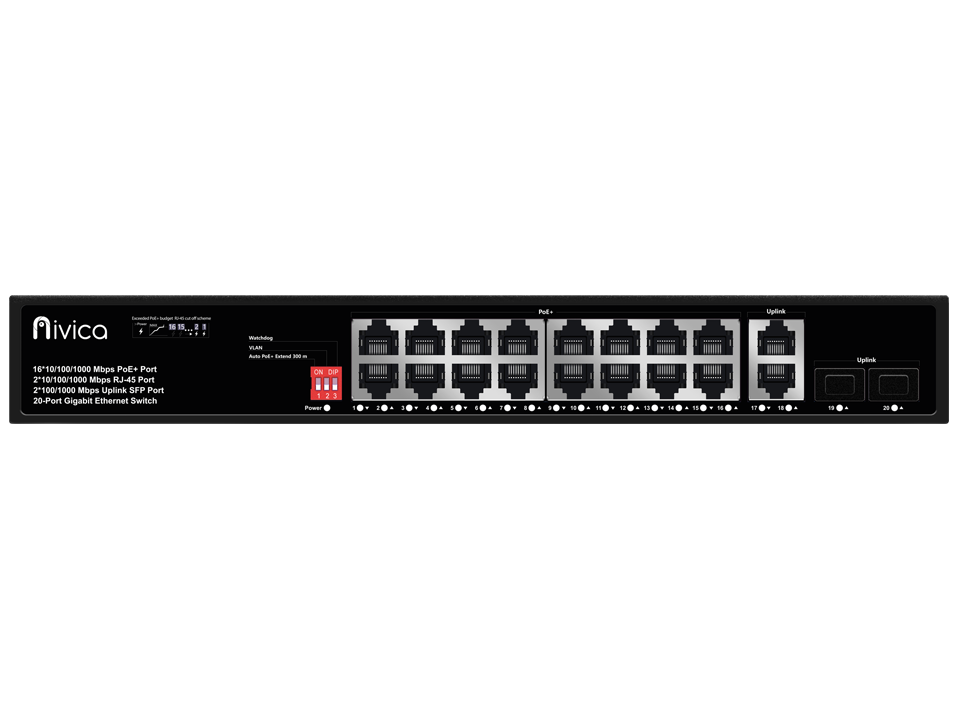

The device features 16 10/100/1000Mbps ports with PoE+ support and 4 uplink ports (2x 1Gbps RJ45 and 2x 100/1000Mbps SFP). It boasts a switching capacity of 40 Gbps, a packet forwarding speed of 29.76 Mpps, an 8K MAC address table, and 4M buffer memory.

It is powered by a built-in AC 100-240V 50-60Hz power supply with a total power budget of 200W, consuming less than 5W in standby mode and up to 200W at full load.

From the perspective of the installer and user, the switch provides complete flexibility and physical infrastructure security.

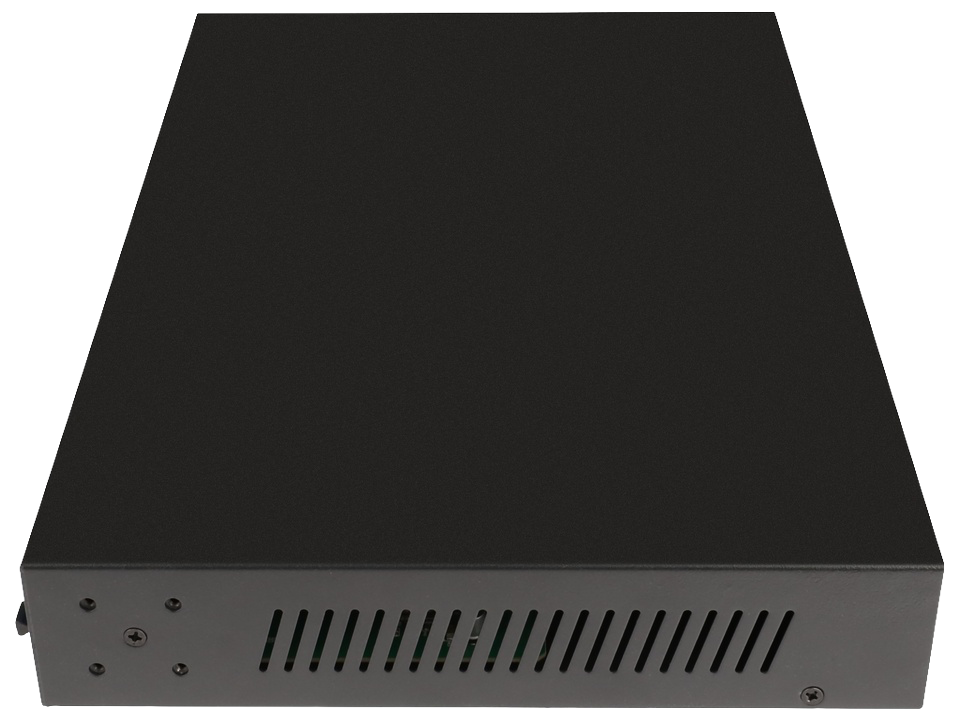

The base Ethernet ports offer automatic 10/100/1000Base-T(X) detection and MDI/MDI-X adaptation for full and half-duplex modes, while the SFP ports allow for flexible matching of fiber modules (single/multi-mode, single/dual fiber, LC, ordered separately). Measuring 290 x 181 x 44 mm and weighing under 1.6 kg (net), the device supports desktop, wall-mounted, and 1U rack installations.

The IP30-rated enclosure stands out for its high resistance to electrostatic discharge (ESD) (±8kV contact, ±15kV air) and professional surge protection (power supply: CM±4kV/DM±2kV, ports: ±4kV), guaranteeing stable operation across a wide operating temperature range from -20°C to +55°C. For the network administrator and installer, a key convenience is the physical DIP switch implementing the advanced EVD function.

It enables immediate default port prioritization as well as the activation of three special modes: E-1 mode (AI Extend), extending data and power transmission up to 300 meters with a speed limit of 10Mbps on a single port while maintaining 1000Mbps on other ports within 100 meters; V-2 mode, enabling port isolation and VLAN functionality; and D-3 mode, activating the intelligent AI-PoE Network auto restart system (PoE Watchdog function), which automatically detects and restarts frozen IP cameras, reducing maintenance costs.

The device supports Store and Forward switching mode, is based on IEEE802.3 protocols, and complies with rigorous certification standards including CCC, CE, LVD EN60950, and FCC Part 15 Class B while adhering to the RoHS directive.
