NV-SW-1916P-XE-2GU1SU

■ 16 PoE ports compliant with the IEEE802.3af/at standard, including ports 1-12 with up to 30W and ports 13-16 with increased power up to 60W.
■ Advanced operation modes managed via a dial switch: AI Extend (range up to 300 m), port isolation and VLAN (1-4), and PoE Watchdog (network auto restart).
■ Fanless design (Non-Fan) ensuring silent operation and versatile mounting methods (desktop, wall, 19" 1U rack).
■ High non-blocking performance: 9.2Gbps throughput, 6.84Mpps forwarding rate, 8K MAC address table, and 4M buffer memory.
■ Professional electrostatic and surge protection (ESD ±8kV/±15kV, port surge ±4kV, and power surge CM±4kV/DM±2kV) in an IP30-rated enclosure.

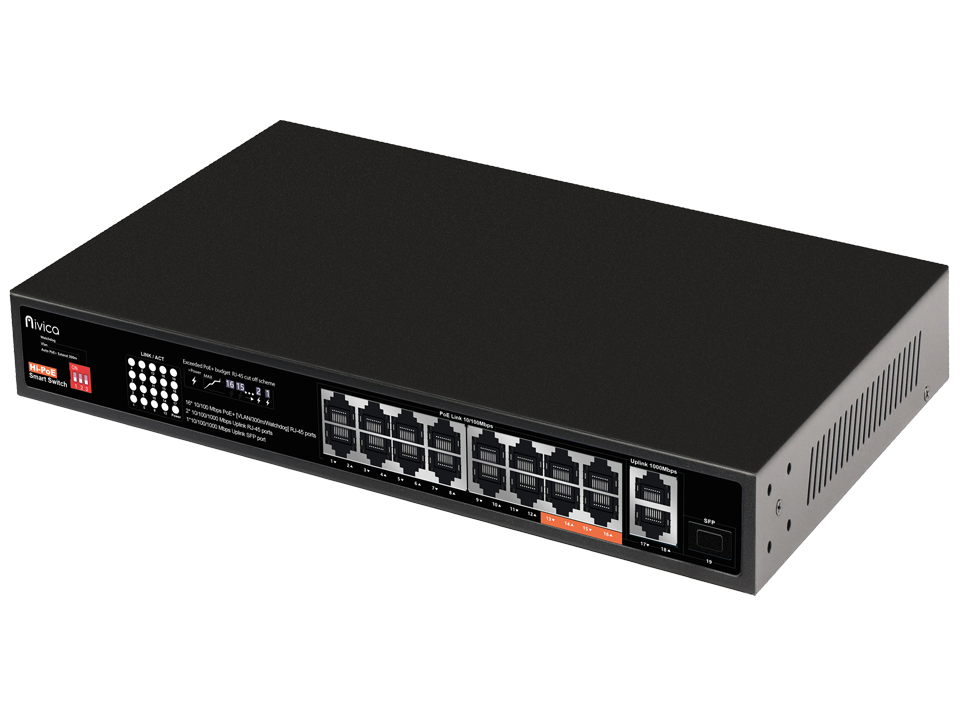

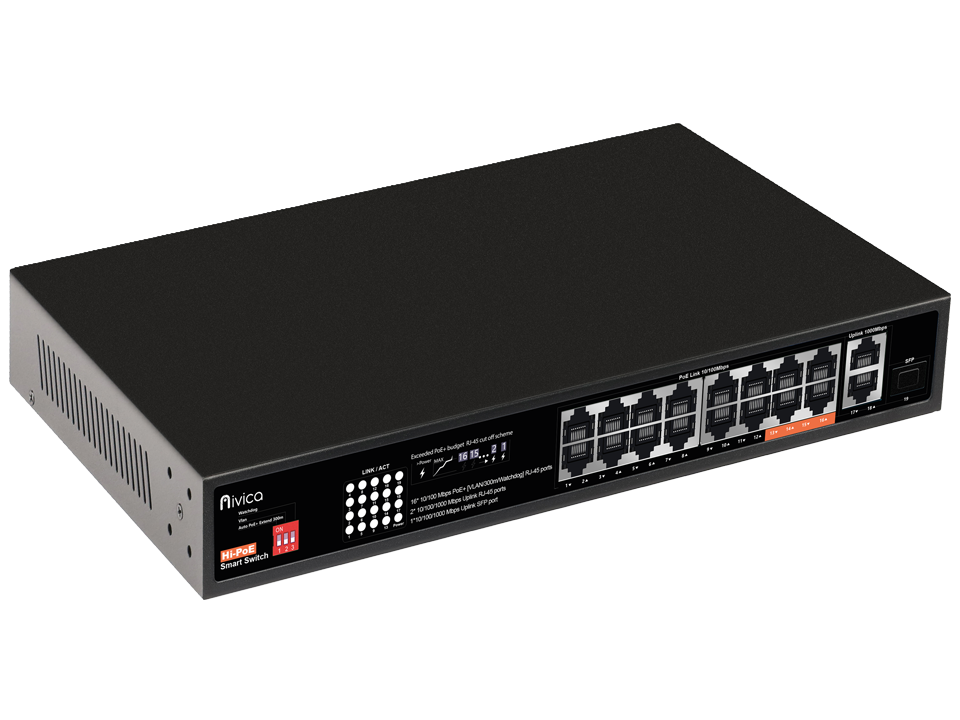

Nivica NV-SW-1916P-XE-2GU1SU is an advanced Store and Forward network switch designed specifically for professional video surveillance systems and network infrastructure.

The device offers non-blocking switching performance of 9.2Gbps, a forwarding rate of 6.84Mpps, support for an 8K MAC address capacity, and a 4M buffer memory.

The switch fully supports key network protocols including IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, and IEEE802.3x, ensuring seamless integration across diverse transmission environments.

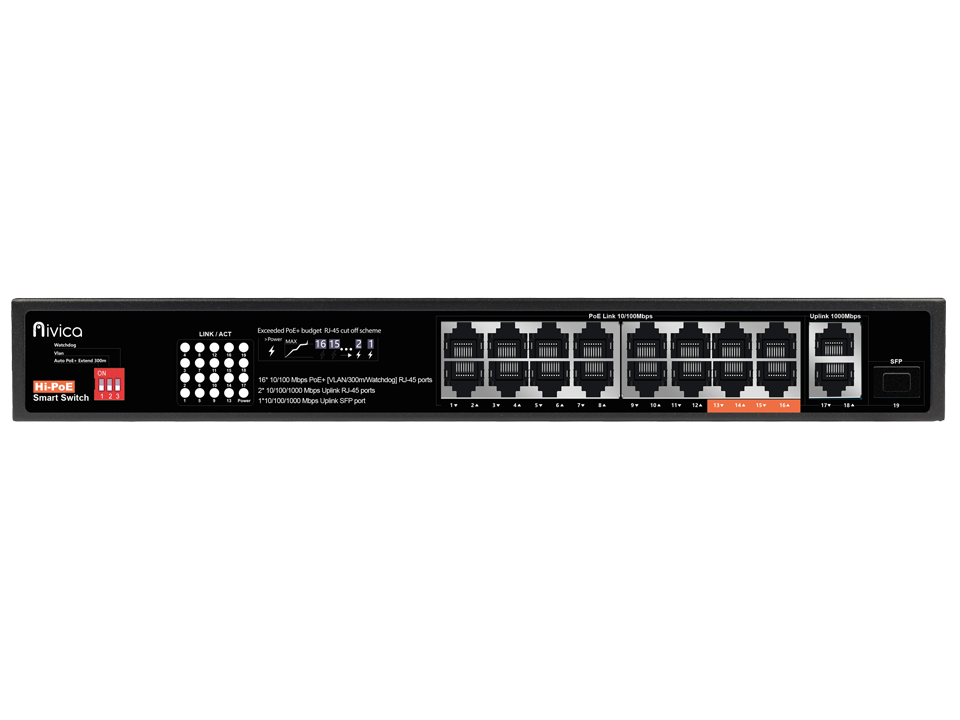

In terms of interfaces, the device features 16 10/100Base-T/TX PoE ports supporting data transmission and power supply, two gigabit 10/100/1000Base-T/TX RJ45 ports, and one 100/1000Base-X SFP fiber slot (supporting single/multi-mode, single/dual fiber, LC modules, ordered separately). The Ethernet ports are equipped with automatic 10/100/1000Base-T(X) detection and full/half Duplex MDI/MDI-X adaptive features.

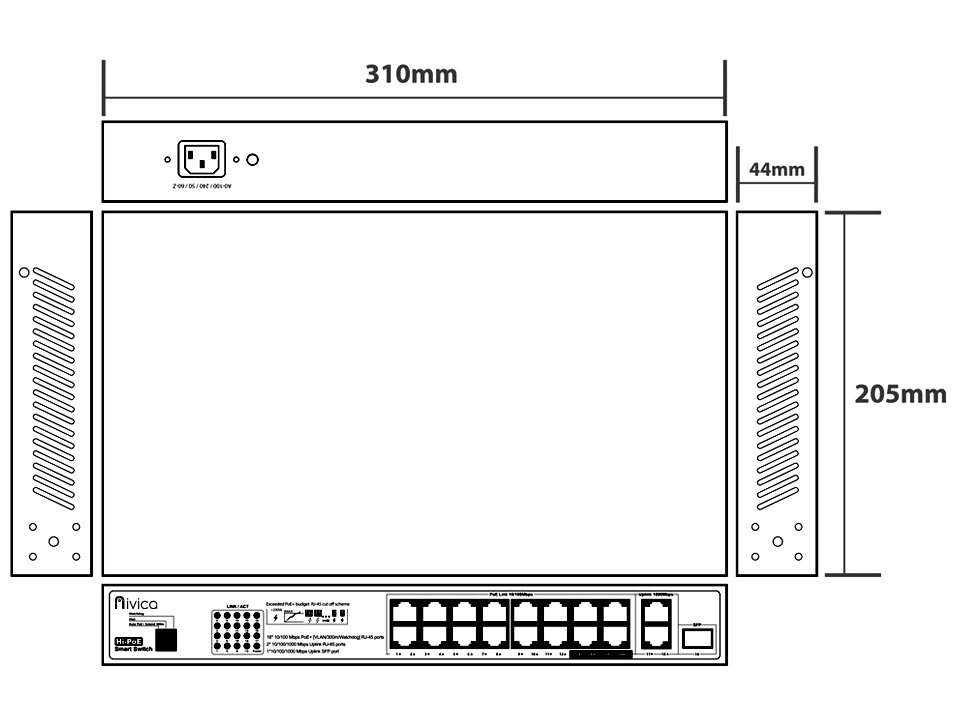

Compact dimensions (310 x 205 x 44 mm), low weight (net <3 kg, gross <4 kg), and flexible installation methods (desktop type, wall-mounted, or 19-inch 1U cabinet) facilitate deployment in any location.

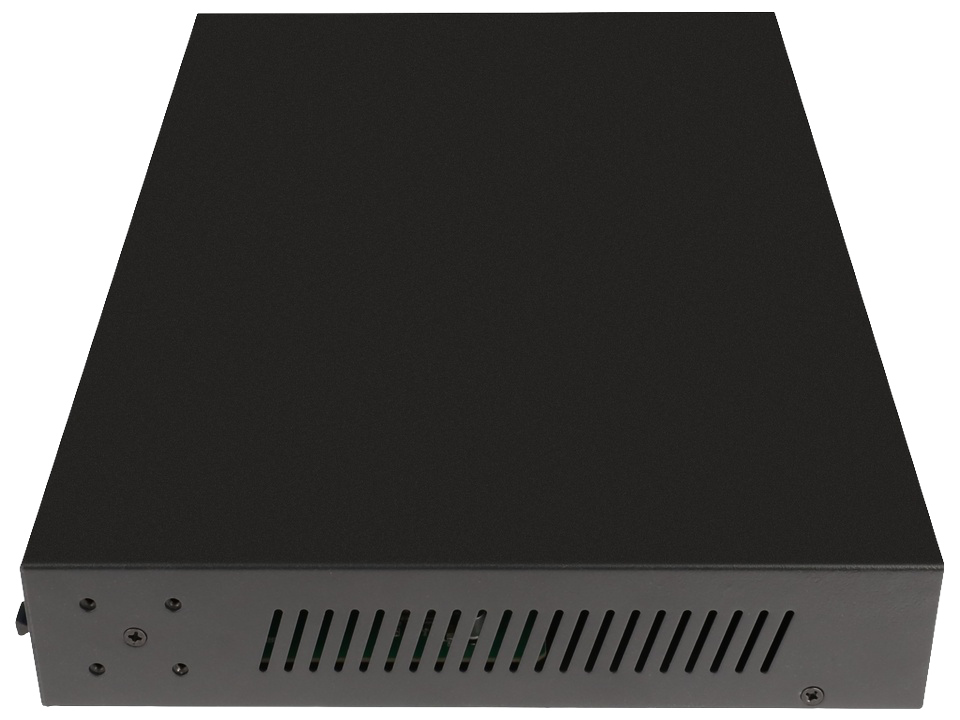

Thanks to its fanless design (Non-Fan), the switch operates completely silently, allowing for installation in noise-sensitive environments.

From an administrator and installer perspective, the device provides convenient management of special functions using a dial switch.

By default, it supports port priority, and when respective modes are enabled, it provides the AI Extend function (transmission up to 300 meters with automatic speed reduction to 10 Mbps on a single port while maintaining 100M/1000M on others), port isolation and VLAN for ports 1-4, and the AI-PoE Network auto restart function (PoE Watchdog), which automatically resolves camera issues and reduces maintenance costs.

Power is supplied via a built-in AC 100~240V (50-60Hz) power adapter with a total capacity of 250W, utilizing standard power pins 1/2(+), 3/6(-). Power consumption is less than 5W in standby mode and a maximum of 250W under full load.

The unit demonstrates high reliability in industrial conditions, confirmed by an IP30 protection rating, resistance to electrostatic discharge and surges (in compliance with IEC61000-4-2 and IEC61000-4-5 standards), CCC, CE (commercial, LVD EN60950), FCC Part 15 Class B, and ROHS certifications, while operating within a temperature range of -20°C to +55°C and 5%~90% relative humidity (non-condensing).
