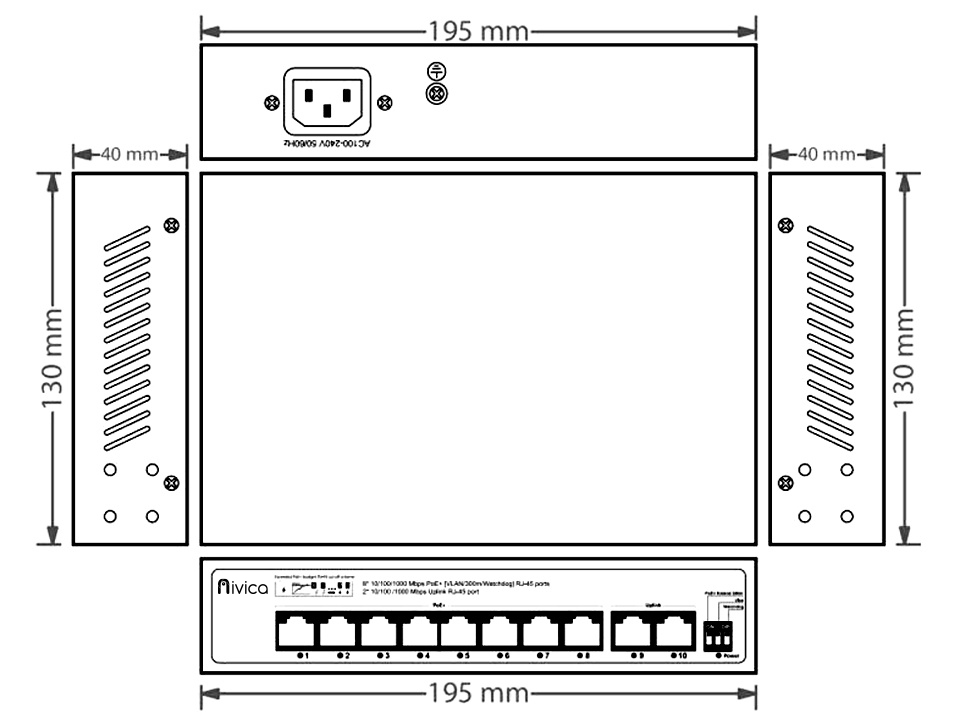

Diagram
PoE Switch
NV-SW-1008PG-XE-2GU
EAN: 5904708319912
Unmanaged Gigabit PoE Switch (8x PoE Gigabit + 2x Uplink Gigabit)
Key Features
■ 8 10/100/1000Mbps PoE ports supporting IEEE802.3af/at standards and 2 10/100/1000Mbps RJ45 uplink ports
■ High switching capacity of 20 Gbps and a packet forwarding rate of 14.88 Mpps using the Store and Forward method
■ Advanced EVD function controlled by a DIP switch switch (AI Extend up to 300 m, port/VLAN isolation, and automatic PoE Watchdog network auto restart)
■ High level of protection and safety including surge/lightning protection (power supply CM±4kV/DM±2kV, ports ±4kV) and ESD protection (contact ±8kV, air ±15kV)
■ Built-in AC100-240V power supply with a total power of 120W, enclosed in a compact IP30 housing with dimensions of 220 x 145 x 44 mm, supporting desktop or wall mounting.

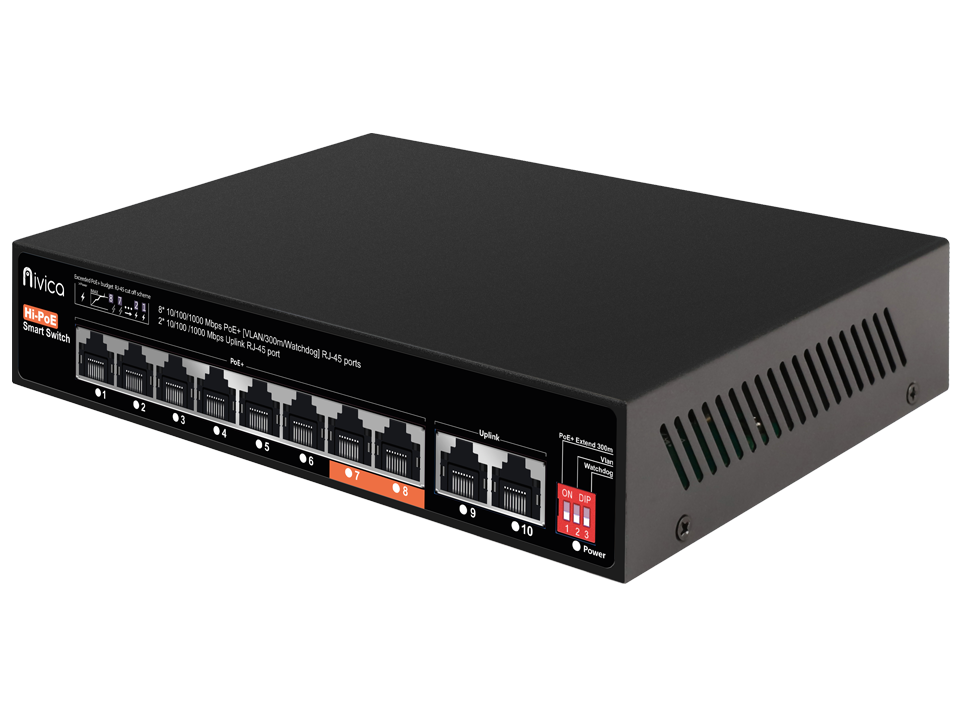

The Nivica NV-SW-1008PG-XE-2GU is an advanced network switch designed for high-performance installations and professional video surveillance systems.
The device is based on the Store and Forward architecture, offering a switching capacity of 20 Gbps, a forwarding rate of 14.88 Mpps, a 4K MAC address table, and a 4M buffer memory.
The switch fully supports a wide range of IEEE802.3 network protocols, including 10BASE-T, 100Base-TX, 1000Base-T, 1000base-X, and 100Base-FX standards, ensuring reliable data transmission in diverse network environments.
From the perspective of the installer and user, this model offers full flexibility thanks to automatic 10/100/1000Base-T(X) detection and full/half-duplex MDI/MDI-X adaptation.
Ports 1 through 8 deliver stable power compliant with the IEEE802.3af/at standard using standard power supply pins 1/2(+) and 3/6(-), perfectly powering end devices such as IP cameras.
The IP30-rated construction weighs less than 0.8 kg (gross weight <1.5 kg) and features compact dimensions of 220 x 145 x 44 mm, enabling easy installation on a desktop or directly on a wall.

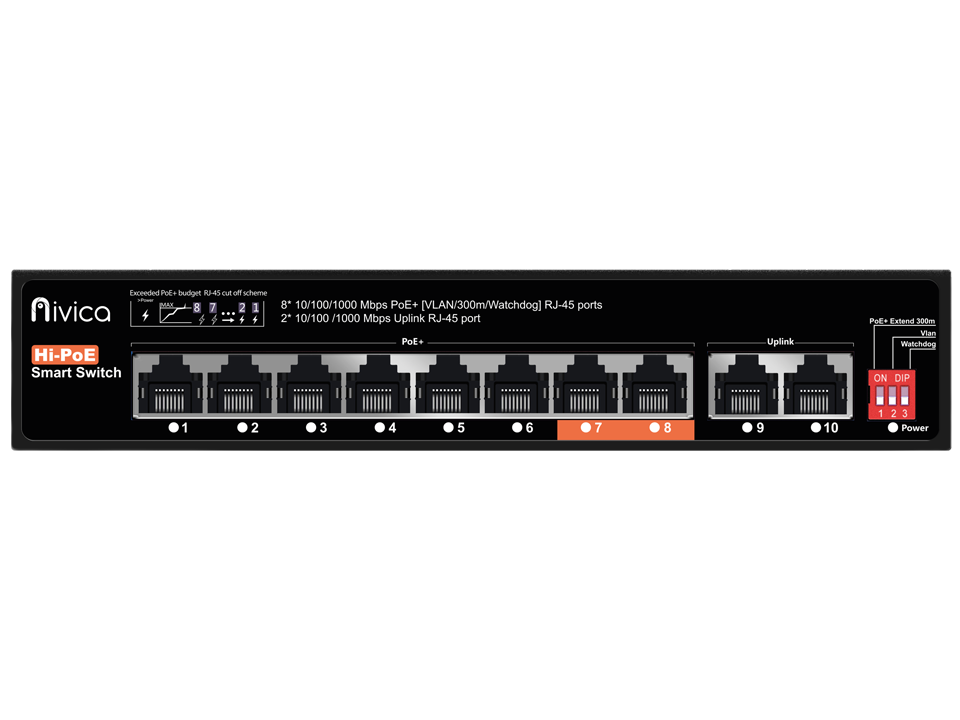

Device status is fully monitored via clear LED indicators showing power (PWR) and network activity (Link/Act) for each port.
Network administrators and installers gain a powerful tool thanks to the built-in DIP switch switch, which supports the EVD function with three operation modes.
Mode E-1 (AI Extend) allows for extending transmission up to 300 meters with automatic speed change of a single port to 10Mbps, while other ports maintain 1000M within 100 meters.
Mode V-2 activates port isolation and VLAN support, and mode D-3 enables the AI-PoE Network auto restart function (PoE Watchdog), which automatically resolves issues with frozen cameras, significantly reducing maintenance costs.
The entire system is powered by a built-in AC100-240V 50-60Hz power supply with a maximum load of up to 120W, while maintaining a low standby power consumption of less than 2W. Operational safety and stability in demanding conditions are confirmed by an operating temperature range of -20 to +55°C, a humidity tolerance of 5%~90% RH, and rigorous certifications such as CCC, CE, FCC Part 15 Class B, and RoHS.
■ High switching capacity of 20 Gbps and a packet forwarding rate of 14.88 Mpps using the Store and Forward method
■ Advanced EVD function controlled by a DIP switch switch (AI Extend up to 300 m, port/VLAN isolation, and automatic PoE Watchdog network auto restart)
■ High level of protection and safety including surge/lightning protection (power supply CM±4kV/DM±2kV, ports ±4kV) and ESD protection (contact ±8kV, air ±15kV)
■ Built-in AC100-240V power supply with a total power of 120W, enclosed in a compact IP30 housing with dimensions of 220 x 145 x 44 mm, supporting desktop or wall mounting.
The Nivica NV-SW-1008PG-XE-2GU is an advanced network switch designed for high-performance installations and professional video surveillance systems.
The device is based on the Store and Forward architecture, offering a switching capacity of 20 Gbps, a forwarding rate of 14.88 Mpps, a 4K MAC address table, and a 4M buffer memory.
The switch fully supports a wide range of IEEE802.3 network protocols, including 10BASE-T, 100Base-TX, 1000Base-T, 1000base-X, and 100Base-FX standards, ensuring reliable data transmission in diverse network environments.
From the perspective of the installer and user, this model offers full flexibility thanks to automatic 10/100/1000Base-T(X) detection and full/half-duplex MDI/MDI-X adaptation.
Ports 1 through 8 deliver stable power compliant with the IEEE802.3af/at standard using standard power supply pins 1/2(+) and 3/6(-), perfectly powering end devices such as IP cameras.
The IP30-rated construction weighs less than 0.8 kg (gross weight <1.5 kg) and features compact dimensions of 220 x 145 x 44 mm, enabling easy installation on a desktop or directly on a wall.
Device status is fully monitored via clear LED indicators showing power (PWR) and network activity (Link/Act) for each port.
Network administrators and installers gain a powerful tool thanks to the built-in DIP switch switch, which supports the EVD function with three operation modes.
Mode E-1 (AI Extend) allows for extending transmission up to 300 meters with automatic speed change of a single port to 10Mbps, while other ports maintain 1000M within 100 meters.
Mode V-2 activates port isolation and VLAN support, and mode D-3 enables the AI-PoE Network auto restart function (PoE Watchdog), which automatically resolves issues with frozen cameras, significantly reducing maintenance costs.
The entire system is powered by a built-in AC100-240V 50-60Hz power supply with a maximum load of up to 120W, while maintaining a low standby power consumption of less than 2W. Operational safety and stability in demanding conditions are confirmed by an operating temperature range of -20 to +55°C, a humidity tolerance of 5%~90% RH, and rigorous certifications such as CCC, CE, FCC Part 15 Class B, and RoHS.
Technical Parameters
PoE Port
8x 1Gbps (PoE)
PoE Standard
802.3af/at
PoE Budget
120W
RJ45 Uplink Port
2x 1Gbps
Bandwidth
20 Gbps
Management
Unmanaged
Power Supply
100-240V AC
Power Consumption
< 5W (bez PoE)
Features
VLAN, AI-PoE, Extend 300m
Enclosure
Desktop
Full specifications
| Model | NV-SW-1008PG-XE-2GU |
| PoE Ports | 8*10/100/1000Mbps |
| Uplink Ports | 2*10/100/1000Mbps RJ45 Ports |
| Switching Capacity | 20Gbps |
| Forwarding Rate | 14.88Mpps |
| MAC Address Table | 4K |
| Buffer Memory | 4M |
| Power Supply | 120W (100-240V) |
| Power Consumption | Standby: <2W; Full load: <120W. |
| LED Indicator | Power indicator: PWR (Green); Network indicator: 1-8(Link/Act)/ (Green); 9-10(Link/Act)/ (Green). |
| Dimension | 220 * 145 * 44 mm |
| Net/Gross Weight | <0.8 kg / <1.5 kg |
| PoE standard | Port 1-8 support IEEE802.3af/at; |
| Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3x; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000base-X; IEEE802.3u 100Base-FX; |
| EVD Function | With the Dial code switch, support port priority by default. E-1: AI Extend 300 meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 1000M within 100 meters; V-2: Turn on, Each Port support each port Isolation & VLAN; D-3: Turn on Each Port support AI-PoE Network auto restart mode (PoE Watchdog function), Automatic solve the camera problem & reduce after-sale. |
| Ethernet Port Feature | 10/100/1000Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive. |
| Fiber Port Feature | Gigabit SFP Port (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC) |
| Forwarding Mode | Store and Forward |
| Twisted Pair Transmission | 10BASE-T: Cat5 UTP (≤300 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5 or later UTP (≤100 meter) |
| Power Supply Pin | Default 1/2(+), 3/6(-) |
| Power Supply | Build-in power supply AC100-240V 50-60Hz. |
| Operation TEMP / Humidity | -20~+55°C; 5%~90% RH non condensing |
| Storage TEMP / Humidity | -40~+75°C; 5%~95% RH non condensing |
| Installation Method | desktop type, wall mounted |
| Protection | IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge; IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV. |
| Protection Level | IP30 |
| Certification | CCC, CE mark, commercial, CE/LVD EN60950; FCC Part 15 Class B RoHS. |
