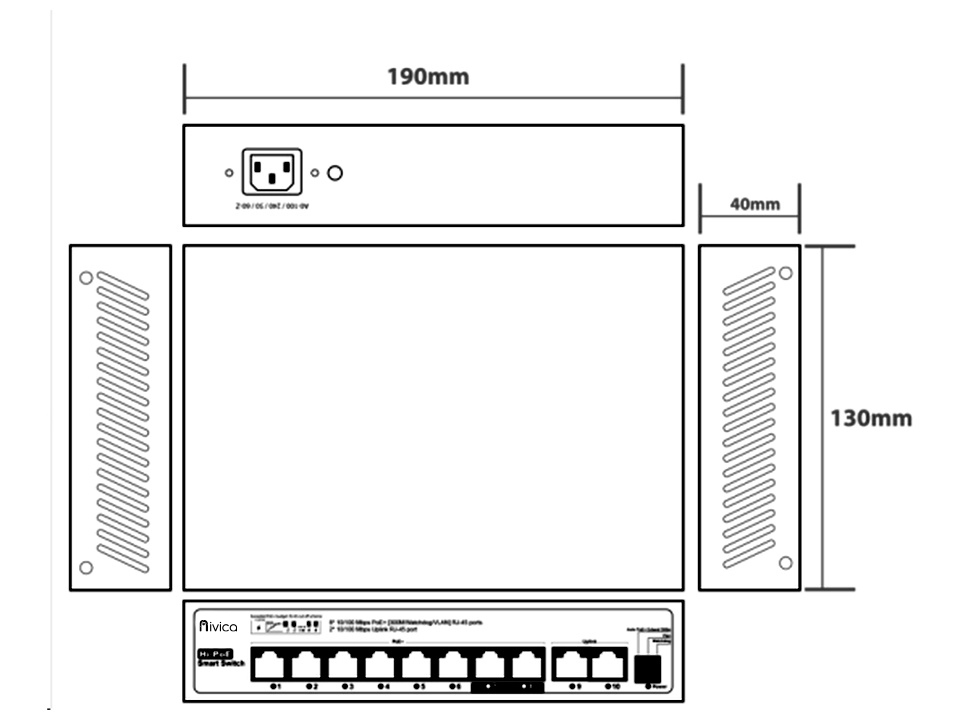

Diagram
PoE Switch
NV-SW-1008P-XE-2GU
EAN: 5904708319905
Unmanaged PoE Switch (6x PoE 100M + 2x High-PoE 60W + 2x Uplink Gigabit)
Key Features
■ 8 10/100Base-T/TX PoE ports (including ports 1-6 supporting standard af/at and ports 7-8 supporting standard af/at/bt) and 2 Uplink 10/100/1000Base-T/TX RJ45 ports
■ DIP switch with AI Extend functions (transmission up to 300 m), port/VLAN isolation, and AI-PoE network auto restart (PoE Watchdog)
■ High switching capacity of 5.6 Gbps, packet forwarding rate of 4.17 Mpps, 1.25M buffer memory, and support for a 4K MAC address table
■ Built-in AC 100~240V power supply with a total power budget of 120W and low standby power consumption of less than 4W
■ Sturdy IP30-rated housing with advanced ESD protection (±8kV contact discharge, ±15kV air discharge) and surge protection (power supply: CM±4kV/DM±2kV; ports: ±4kV). The Nivica NV-SW-1008P-XE-2GU is an advanced network switch designed for power supply and data transmission in IP surveillance systems and modern structured networks.
The device provides a switching capacity of 5.6 Gbps, a packet forwarding rate of 4.17 Mpps, a 1.25M buffer memory, and support for 4K MAC addresses.
The design features compact dimensions of 195 x 130 x 40 mm, a net weight of less than 1 kg (gross weight less than 1.2 kg), and adaptability for desktop or wall-mounted installation, meeting stringent IP30 ingress protection standards as well as CCC, CE, FCC, and RoHS certifications.
From the installer's and user's perspective, the device is equipped with flexible transmission interfaces supporting IEEE802.3, IEEE802.3i, IEEE802.3u, and IEEE802.3x protocols in Store and Forward mode with auto-detection and MDI/MDI-X function.
Transmission over carefully selected Category 5 or higher UTP cables reaches up to 300 meters for 10BASE-T/100BASE-TX ports and up to 100 meters for 1000BASE-TX ports.
A high level of operational safety in variable environmental conditions is guaranteed by an operating temperature range of -20°C to +55°C and relative humidity resistance from 5% to 90% RH (non-condensing). From the administrator's and installer's perspective, device management is handled via a physical DIP switch.
In the default mode, it supports port prioritization, while activation of individual AI functions significantly simplifies technical maintenance: mode E (AI Extend) enables transmission up to 300 meters with automatic single-port speed change down to 10 Mbps, mode V enables isolation and VLAN for ports 1-8, and mode D activates the AI-PoE Network auto restart function (PoE Watchdog), which automatically resolves camera issues and reduces post-sales service costs.
The switch is powered by a built-in AC 100~240V (50-60Hz) power supply delivering a total of 120W, where ports 1-8 offer an average power of 30W/15.4W, and ports 7-8 can supply a maximum of up to 60W, with total power consumption under full load not exceeding 120W.
■ DIP switch with AI Extend functions (transmission up to 300 m), port/VLAN isolation, and AI-PoE network auto restart (PoE Watchdog)
■ High switching capacity of 5.6 Gbps, packet forwarding rate of 4.17 Mpps, 1.25M buffer memory, and support for a 4K MAC address table
■ Built-in AC 100~240V power supply with a total power budget of 120W and low standby power consumption of less than 4W
■ Sturdy IP30-rated housing with advanced ESD protection (±8kV contact discharge, ±15kV air discharge) and surge protection (power supply: CM±4kV/DM±2kV; ports: ±4kV). The Nivica NV-SW-1008P-XE-2GU is an advanced network switch designed for power supply and data transmission in IP surveillance systems and modern structured networks.
The device provides a switching capacity of 5.6 Gbps, a packet forwarding rate of 4.17 Mpps, a 1.25M buffer memory, and support for 4K MAC addresses.
The design features compact dimensions of 195 x 130 x 40 mm, a net weight of less than 1 kg (gross weight less than 1.2 kg), and adaptability for desktop or wall-mounted installation, meeting stringent IP30 ingress protection standards as well as CCC, CE, FCC, and RoHS certifications.
From the installer's and user's perspective, the device is equipped with flexible transmission interfaces supporting IEEE802.3, IEEE802.3i, IEEE802.3u, and IEEE802.3x protocols in Store and Forward mode with auto-detection and MDI/MDI-X function.
Transmission over carefully selected Category 5 or higher UTP cables reaches up to 300 meters for 10BASE-T/100BASE-TX ports and up to 100 meters for 1000BASE-TX ports.
A high level of operational safety in variable environmental conditions is guaranteed by an operating temperature range of -20°C to +55°C and relative humidity resistance from 5% to 90% RH (non-condensing). From the administrator's and installer's perspective, device management is handled via a physical DIP switch.
In the default mode, it supports port prioritization, while activation of individual AI functions significantly simplifies technical maintenance: mode E (AI Extend) enables transmission up to 300 meters with automatic single-port speed change down to 10 Mbps, mode V enables isolation and VLAN for ports 1-8, and mode D activates the AI-PoE Network auto restart function (PoE Watchdog), which automatically resolves camera issues and reduces post-sales service costs.
The switch is powered by a built-in AC 100~240V (50-60Hz) power supply delivering a total of 120W, where ports 1-8 offer an average power of 30W/15.4W, and ports 7-8 can supply a maximum of up to 60W, with total power consumption under full load not exceeding 120W.
Technical Parameters
PoE Port
8x 100Mbps (PoE)
PoE Standard
802.3af/at
PoE Budget
120W
RJ45 Uplink Port
2x 1Gbps
Bandwidth
5.6 Gbps
Management
Unmanaged
Power Supply
100-240V AC
Power Consumption
< 5W (bez PoE)
Features
VLAN, AI-PoE, Extend 300m
Enclosure
Desktop
Full specifications
| Model | NV-SW-1008P-XE-2GU |
| Fixed Port | 8*10/100Base-T/TX PoE ports (Data/Power) 2*10/100/1000Base-T/TX Uplink RJ45 ports (Data) |
| POE Port | Port 1-6 support PoE af/at Port 7-8 support PoE af/at/bt |
| Feature | With the Dial code switch, support port priority by default. E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters; V: Turn on, 1-8 Port support each port Isolation & VLAN; D: Turn on, 1-8 Port support AI-PoE Network auto restart mode (PoE Watchdog function), Automatic solve the camera problem & reduce after-sale. |
| Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x. |
| Ethernet Port Feature | 10/100/1000Base–T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive |
| Fiber Port Feature | Store and Forward |
| Switching Capacity | 5.6Gbps |
| Forwarding Mode | 4.17Mpps |
| MAC | 4K |
| Buffer Memory | 1.25M |
| Twisted Pair Transmission | 10BASE-T:Cat5 UTP(≤300 meter) 100BASE-TX:Cat5 or later UTP(≤300 meter) 1000BASE-TX:Cat5 or later UTP(≤100 meter) |
| Power Supply Pin | Default 1/2(+), 3/6(-) |
| AVERAGE Power Per Port | Port 1-8: 30W/15.4W |
| MAX Power PoE Port | Port 7-8: 60W |
| Total PWR / Input Voltage | 120W |
| Power Consumption | Standby:<4W;Full load:<120W |
| LED Indicator | Power indicator: PWR (Green); Network indicator: 1-8(Link/Act)/ (Green), 9–10(Link/Act)/ (Green) |
| Power Supply | Build-in power adaptor AC100~240V 50-60Hz, 120W |
| Operation TEMP / Humidity | -20~+55°C:5%~90% RH non condensing |
| Storage TEMP / Humidity | -40~+75°C;5%~95% RH non condensing |
| Dimension | 195*130*40mm |
| Net /Gross Weight | <1kg / <1.2kg |
| Installation Method | desktop type ,wall mounted |
| Protection | IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV |
| Protection Level | IP30 |
| Certification | CCC;CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS |
