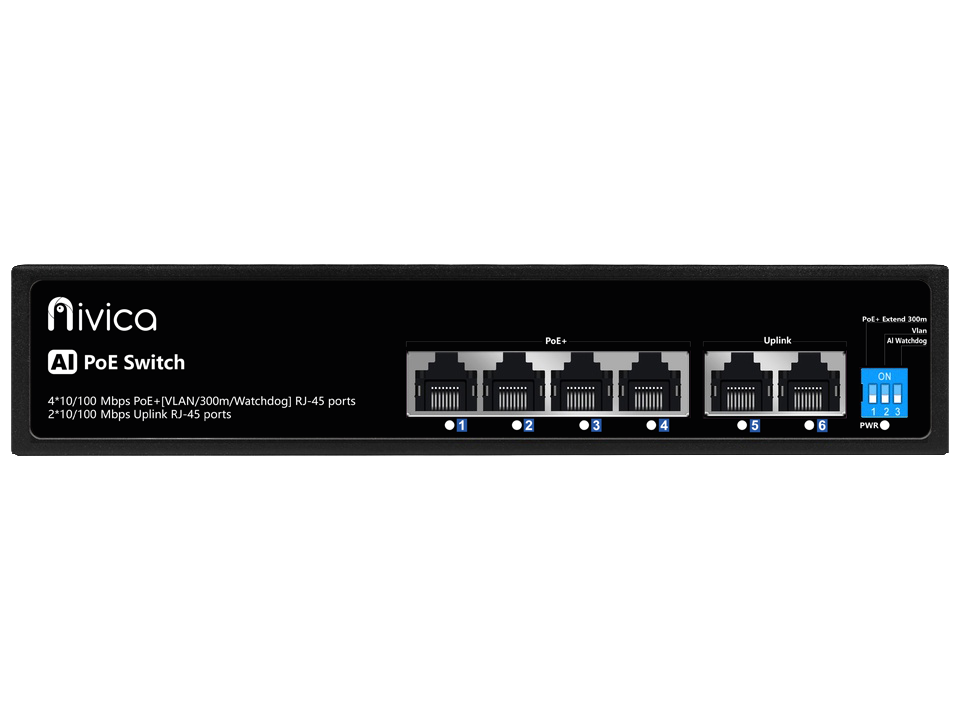

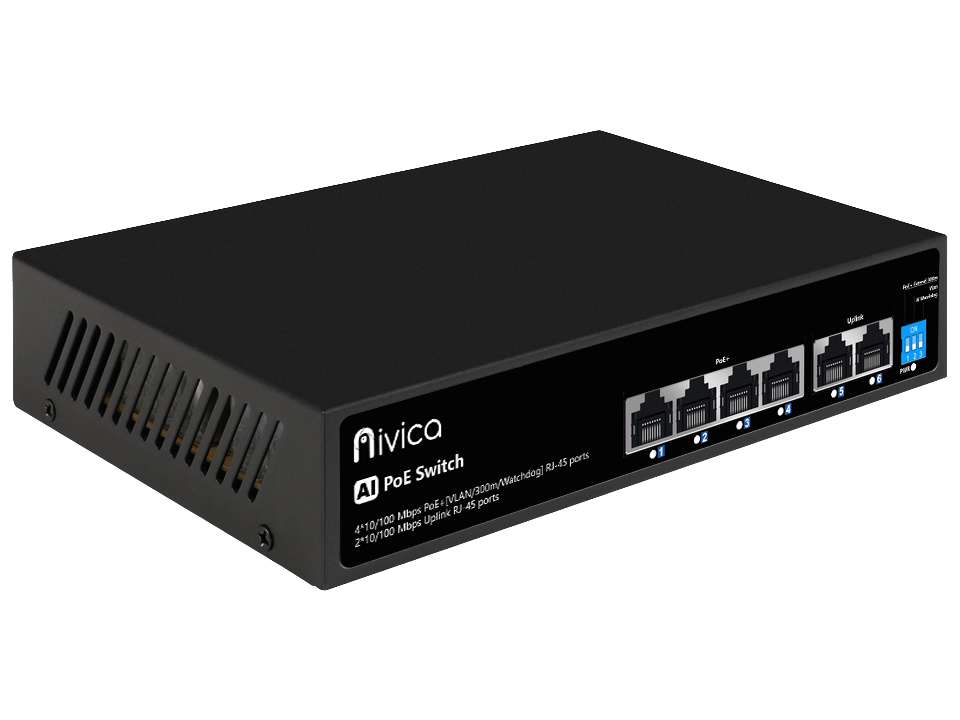

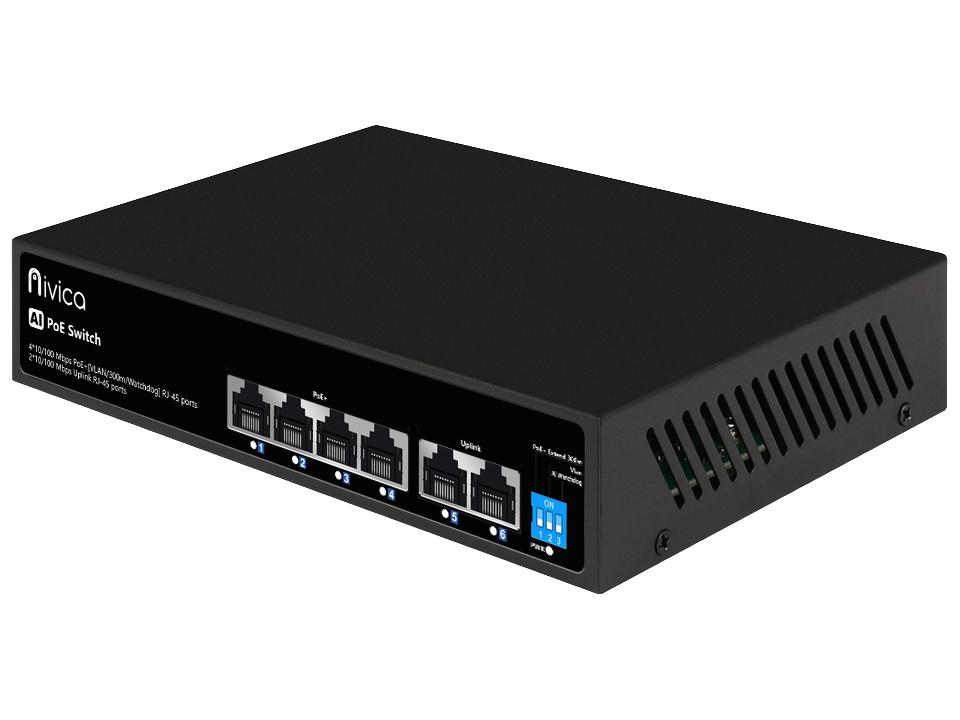

PoE Switch
NV-SW-0604P-XWD-2FU
EAN: 5904708319981
Unmanaged PoE Switch with Extend Mode (4x PoE 100M + 2x Uplink 100M)
Key Features
■ 4 PoE ports compliant with the IEEE802.3af/at standard with a total power budget of 60W
■ Advanced AI EVD function (Extend up to 300m, VLAN isolation, and PoE Watchdog) controlled via a DIP switch switch
■ High performance with a 1.2Gbps switching capacity and a 0.8928Mpps packet forwarding rate
■ Comprehensive surge protection and ESD up to ±15kV for air discharges
■ Versatile desktop and wall-mounting options in a compact IP30-rated housing.
The Nivica NV-SW-0604P-XWD-2FU is an advanced network device operating in Store and Forward mode, featuring a MAC address table accommodating 2K entries and a 768K buffer memory.
The switch offers 4 10/100Mbps PoE ports and uplink ports, delivering a switching capacity of 1.2Gbps and a packet forwarding rate of 0.8928Mpps.

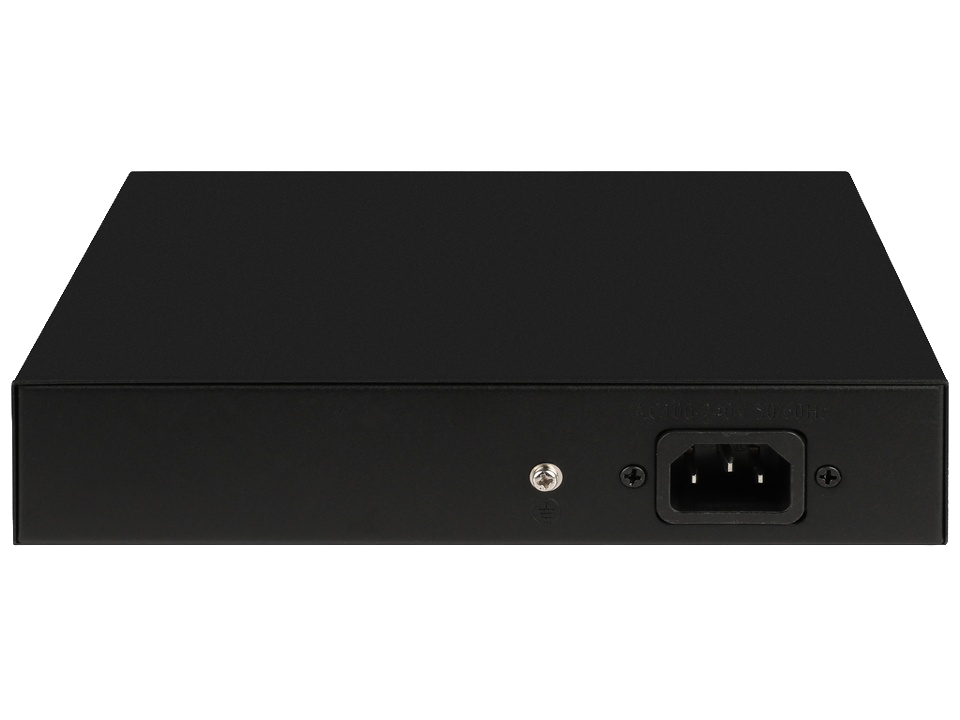

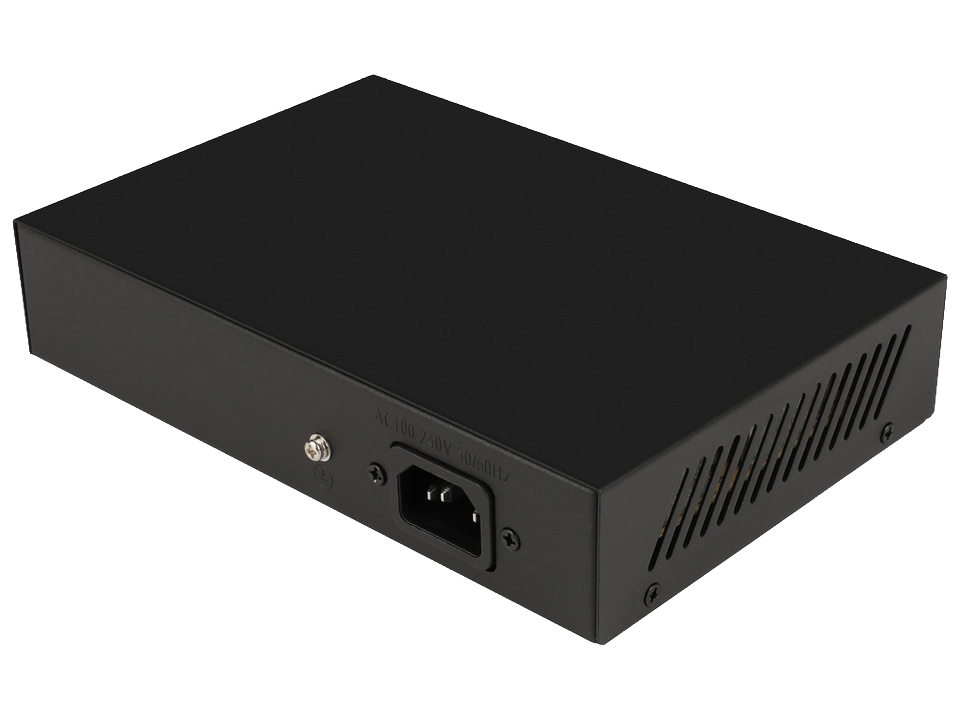

The device is powered by a built-in AC100-240V 50-60Hz power supply with a maximum power of 60W, where power consumption is less than 3W in standby mode and less than 60W under full load.
From the perspective of the installer and user, the switch stands out with flexible interfaces, including Ethernet ports supporting automatic 10/100Base-T(X) detection and full/half Duplex MDI/MDI-X adaptive modes, as well as a gigabit SFP port with the option to order dedicated single/multi-mode, single/dual-fiber LC fiber modules separately.
The device supports key network protocols such as IEEE802.3, IEEE802.3i, IEEE802.3u, and IEEE802.3x.

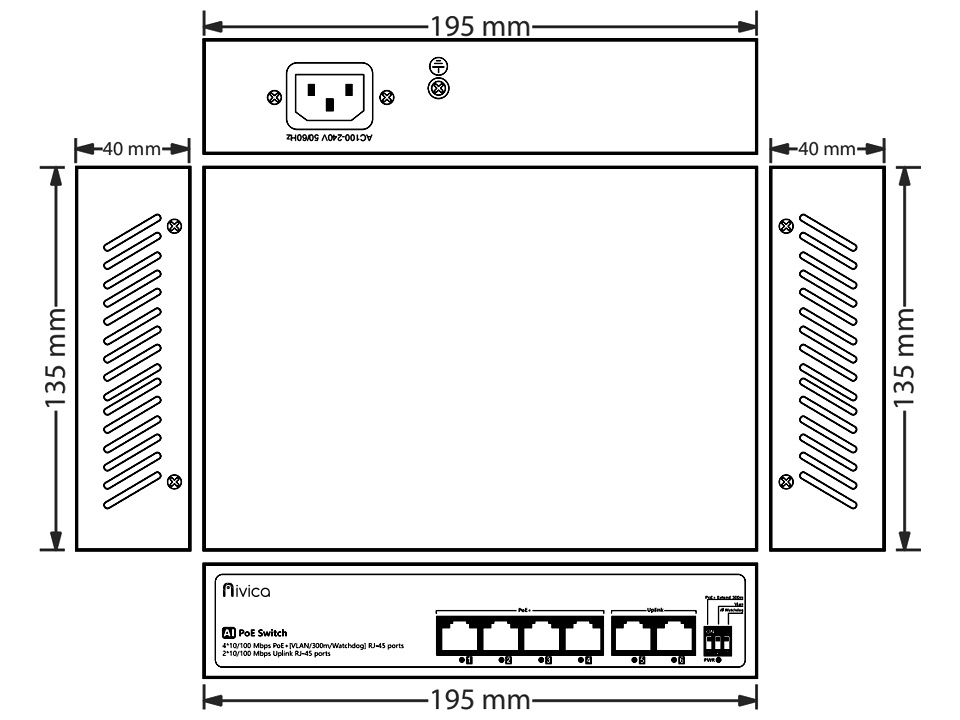

Thanks to its compact dimensions of 195 x 130 x 40 mm and net weight of less than 0.75 kg, the device can be easily mounted on both a desk and a wall.
A robust construction with an IP30 protection class and adaptation to work in temperatures from -20°C to +55°C guarantee trouble-free operation in harsh environmental conditions.
Administrators and installers are provided with intuitive management tools via a physical DIP switch switch that activates the EVD function, revolutionizing peripheral device handling.
Mode E (AI Extend) allows extending transmission up to 300 meters with single-port speed limited to 10Mbps while maintaining 100M on other ports within 100 meters; Mode V ensures independent port isolation and VLAN support; and Mode D activates the PoE Watchdog function (AI-PoE network auto restart), which automatically detects and resolves camera issues, reducing the need for after-sales service interventions.
A high level of operational security is ensured by advanced ESD protections (±8kV contact, ±15kV air) and lightning/surge protection for the power supply (CM±4kV/DM+2kV) and ports (±4kV), as confirmed by international certifications: CCC, CE mark commercial, CE/LVD EN60950, FCC Part 15 Class B, and RoHS.
■ Advanced AI EVD function (Extend up to 300m, VLAN isolation, and PoE Watchdog) controlled via a DIP switch switch
■ High performance with a 1.2Gbps switching capacity and a 0.8928Mpps packet forwarding rate
■ Comprehensive surge protection and ESD up to ±15kV for air discharges
■ Versatile desktop and wall-mounting options in a compact IP30-rated housing.
The Nivica NV-SW-0604P-XWD-2FU is an advanced network device operating in Store and Forward mode, featuring a MAC address table accommodating 2K entries and a 768K buffer memory.
The switch offers 4 10/100Mbps PoE ports and uplink ports, delivering a switching capacity of 1.2Gbps and a packet forwarding rate of 0.8928Mpps.
The device is powered by a built-in AC100-240V 50-60Hz power supply with a maximum power of 60W, where power consumption is less than 3W in standby mode and less than 60W under full load.
From the perspective of the installer and user, the switch stands out with flexible interfaces, including Ethernet ports supporting automatic 10/100Base-T(X) detection and full/half Duplex MDI/MDI-X adaptive modes, as well as a gigabit SFP port with the option to order dedicated single/multi-mode, single/dual-fiber LC fiber modules separately.
The device supports key network protocols such as IEEE802.3, IEEE802.3i, IEEE802.3u, and IEEE802.3x.
Thanks to its compact dimensions of 195 x 130 x 40 mm and net weight of less than 0.75 kg, the device can be easily mounted on both a desk and a wall.
A robust construction with an IP30 protection class and adaptation to work in temperatures from -20°C to +55°C guarantee trouble-free operation in harsh environmental conditions.
Administrators and installers are provided with intuitive management tools via a physical DIP switch switch that activates the EVD function, revolutionizing peripheral device handling.
Mode E (AI Extend) allows extending transmission up to 300 meters with single-port speed limited to 10Mbps while maintaining 100M on other ports within 100 meters; Mode V ensures independent port isolation and VLAN support; and Mode D activates the PoE Watchdog function (AI-PoE network auto restart), which automatically detects and resolves camera issues, reducing the need for after-sales service interventions.
A high level of operational security is ensured by advanced ESD protections (±8kV contact, ±15kV air) and lightning/surge protection for the power supply (CM±4kV/DM+2kV) and ports (±4kV), as confirmed by international certifications: CCC, CE mark commercial, CE/LVD EN60950, FCC Part 15 Class B, and RoHS.
Technical Parameters
PoE Port
4x 100Mbps (PoE)
PoE Standard
802.3af/at
PoE Budget
60W
RJ45 Uplink Port
2x 100Mbps
Bandwidth
1.2 Gbps
Management
Unmanaged
Power Supply
100-240V AC
Power Consumption
< 3W (bez PoE)
Features
VLAN, AI-PoE, Extend 300m
Enclosure
Desktop
Full specifications
| Model | NV-SW-0604P-XWD-2FU |
| PoE Ports | 4*10/100Mbps |
| Uplink Ports | 2*10/100Mbps RJ45 Ports |
| Switching Capacity | 1.2Gbps |
| Forwarding Rate | 0.8928Mpps |
| MAC Address Table | 2K |
| Buffer Memory | 768K |
| Power Supply | 60W |
| Power Consumption | Standby: $<3W$ Full load: $<60W$ |
| LED Indicator | Power indicator: PWR (Green); Network indicator: 1-4(Link/Act)/(Green): $5-6(Link/Act)/$(Green). |
| Dimension | $195^{*}130^{*}40mm$ |
| Net/Gross Weight | $<0.75kg/<1kg$ |
| Ethernet Port Feature | 10/100Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive. |
| Network Protocol | IEEE802.3 10BASE-T; IEEE802.31 10Base-T; IEEE802.3u 100Base-TX IEEE802.3x. |
| EVD Function | With the Dial code switch: E:Al Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M within 100 meters; V:Turn on, Each Port support each port Isolation & VLAN, D:Turn on, Each Port support Al-PoE Network auto restart mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale. |
| PoE standard | PoE Ports support @IEEE802.3af/at. |
| Fiber Port Feature | Gigabit SFP Port (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC) |
| Forwarding Mode | Store and Forward |
| Twisted Pair Transmission | 10BASE-T: Cat5 UTP ( $(\le300$ meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5 or later UTP (≤100 meter) |
| Power Supply Pin | Default $1/2(+)$ $3/6(-)$ |
| Power Supply | Build-in power supply AC100-240V 50-60Hz. |
| Operation TEMP/ Humidity | $-20-+55^{\circ}C$ 5%~90% RH non condensing |
| Storage TEMP/ Humidity | $-40-+75^{\circ}C;$ 5%-95% RH non condensing |
| Installation Method | desktop type, wall mounted; |
| Protection | IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge; IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM+2kV; Port: ±4kV. |
| Protection Level | IP30 |
| Certification | CCC,CE mark.commercial.CE/LVD EN60950,FCC Part 15 Class B ROHS. |
