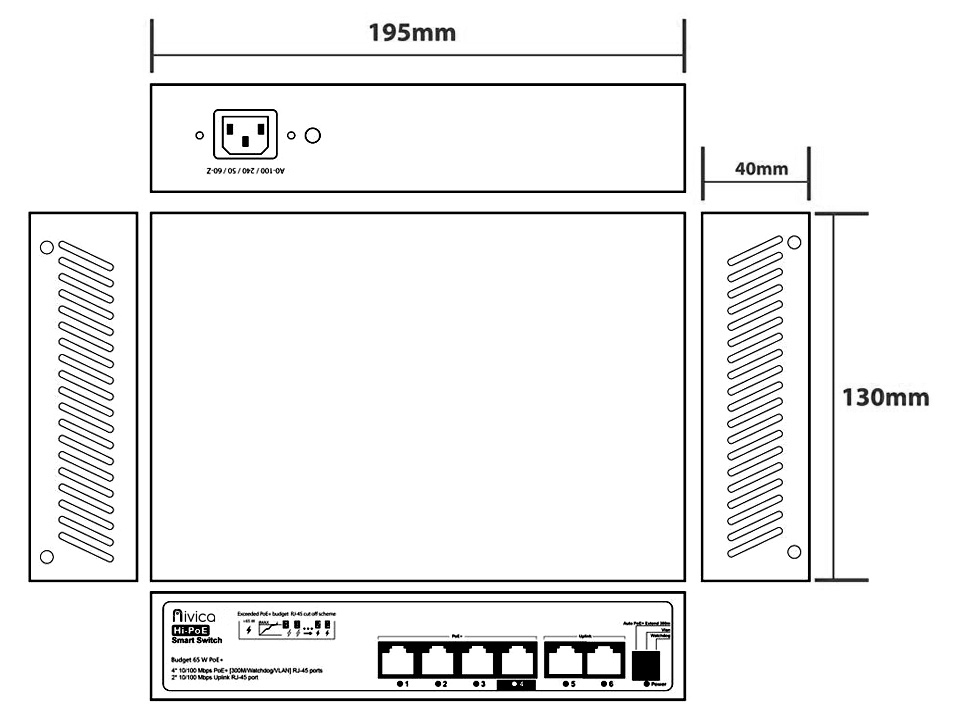

Diagram

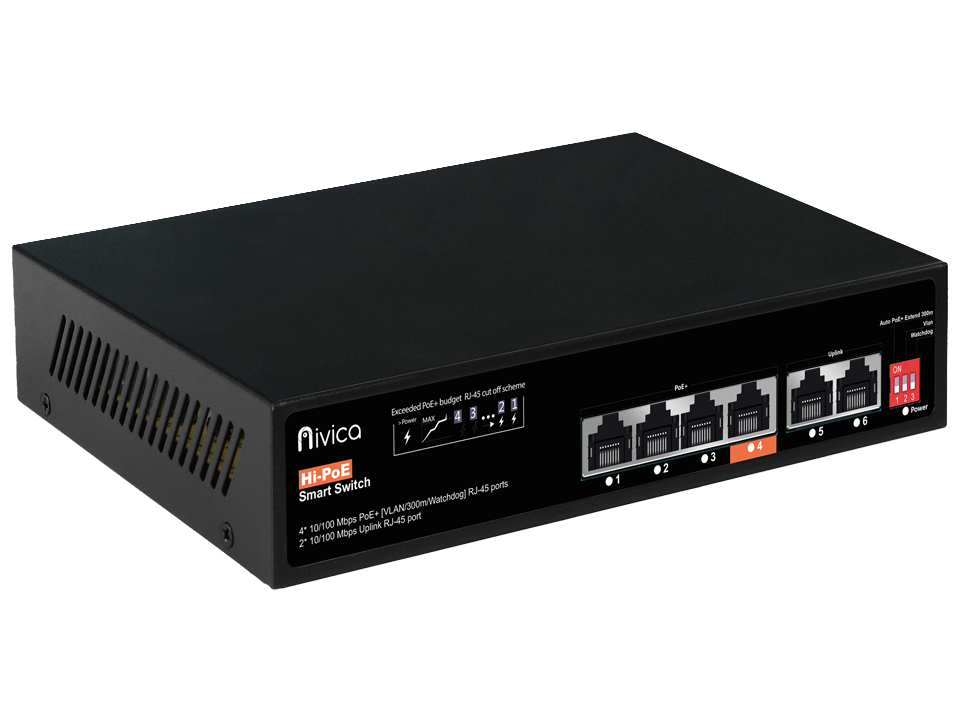

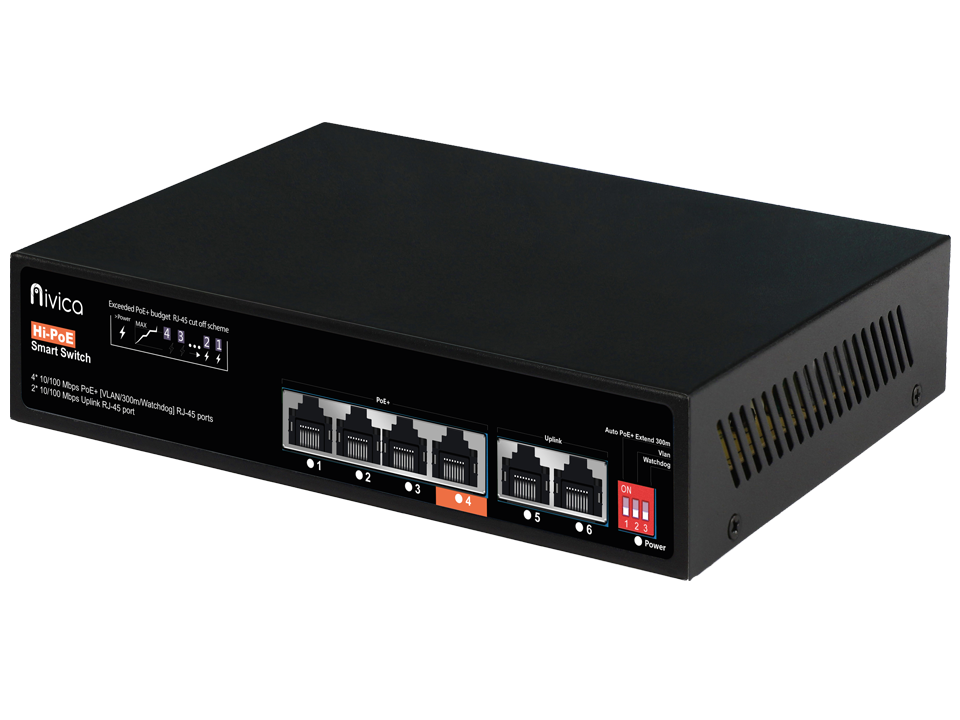

PoE Switch
NV-SW-0604P-XE-2FU
EAN: 5904708319967
Unmanaged PoE Switch (3x PoE 100M + 1x High-PoE 60W + 2x Uplink 100M)
Key Features
■ PoE standard support on ports 1–4 with a maximum power of up to 30W on ports 1–3 and up to 60W on port 4
■ DIP switch enabling quick configuration of AI Extend modes (transmission up to 300 meters), VLAN (port isolation), and PoE Watchdog (network auto restart)
■ efficient architecture with a 1.2Gbps switching capacity, 0.89Mpps packet forwarding rate, 2K MAC address table, and 768K buffer memory
■ advanced ESD electrostatic discharge protection (±8kV contact, ±15kV air) and surge/lightning protection (Power: CM±4kV/DM±2kV, Port: ±4kV) with an IP30 enclosure protection rating
■ universal desktop and wall-mounted installation options in a solid enclosure with dimensions of 195*130*40 mm and a weight of less than 0.8 kg.
The Nivica NV-SW-0604P-XE-2FU is an advanced Nivica network switch designed for reliable telecommunications installations and video surveillance systems.
The device features a total of 6 ports, including four 10/100Base-T/TX PoE ports (supporting IEEE802.3, IEEE802.3i, IEEE802.3u, and IEEE802.3x network standards) and 2 RJ45 Uplink ports dedicated to data transmission.
The design is based on high-performance components providing a Switching Capacity of 1.2Gbps, a Forwarding Mode packet rate of 0.89Mpps, a MAC address table capacity of 2K, and a 768K buffer memory.
The Ethernet ports support automatic 10/100Base-T(X) detection and full/half duplex MDI/MDI-X adaptive operation.
From the installer and user's perspective, the device offers high cabling and power supply flexibility.

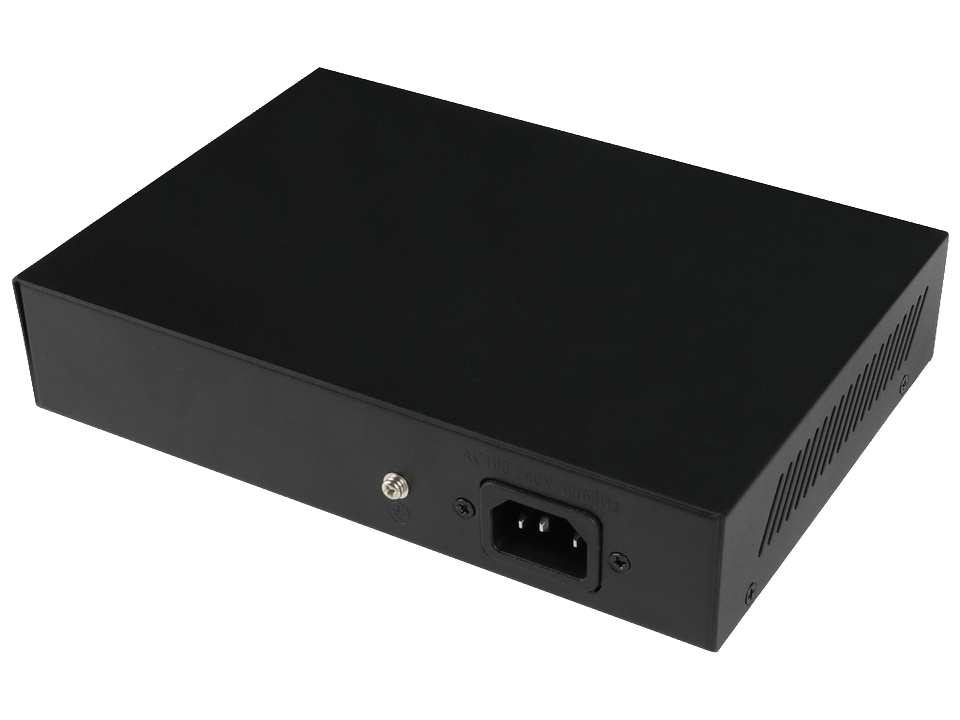

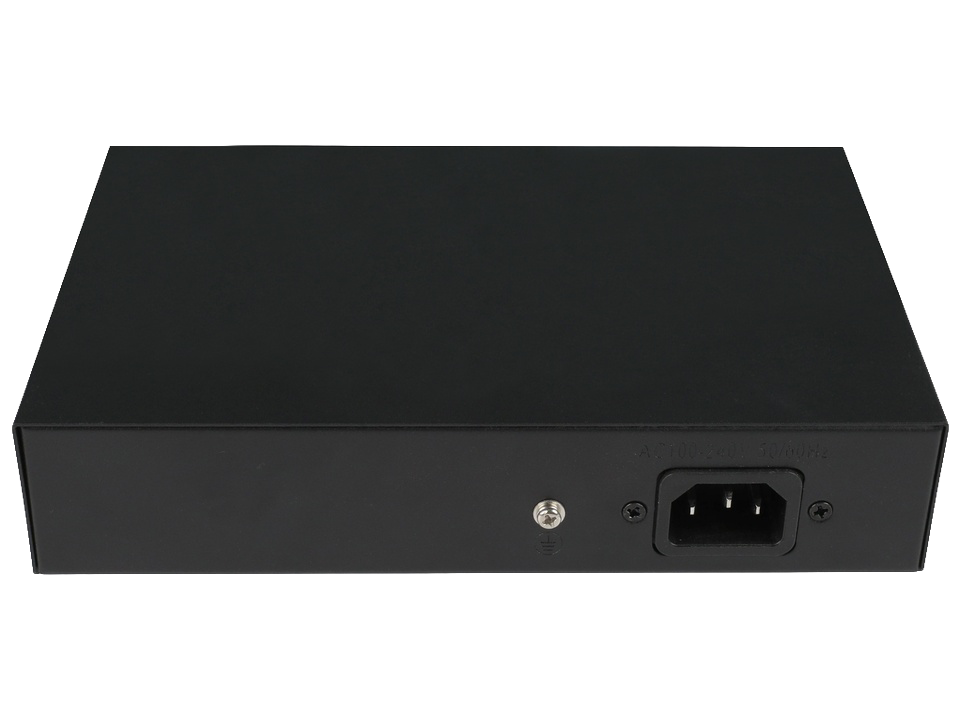

The switch supports twisted-pair transmission using Cat5 UTP up to 300 meters for the 10BASE-T standard and Cat5 or later UTP up to 100 meters for 100BASE-TX. Power supply pin assignment is defaulted to 1/2(+) and 3/6(-). The power budget per port is up to 30W/15.4W (max/average) for ports 1–3 and up to 60W/15.4W for port 4, with a total power supply budget of 65W (52VAC). The device is powered by a built-in AC100~240V (50-60Hz) power adapter and features low power consumption of less than 2W in standby mode and less than 65W at full load.
Compact dimensions (195*130*40 mm) and a low net weight of under 0.8 kg (gross <1.2 kg) allow for convenient desktop or wall mounting, while a wide operating temperature range from -20 to +55°C (and storage from -40 to +75°C) at 5%~90% RH (non-condensing) ensures stability in diverse environmental conditions.

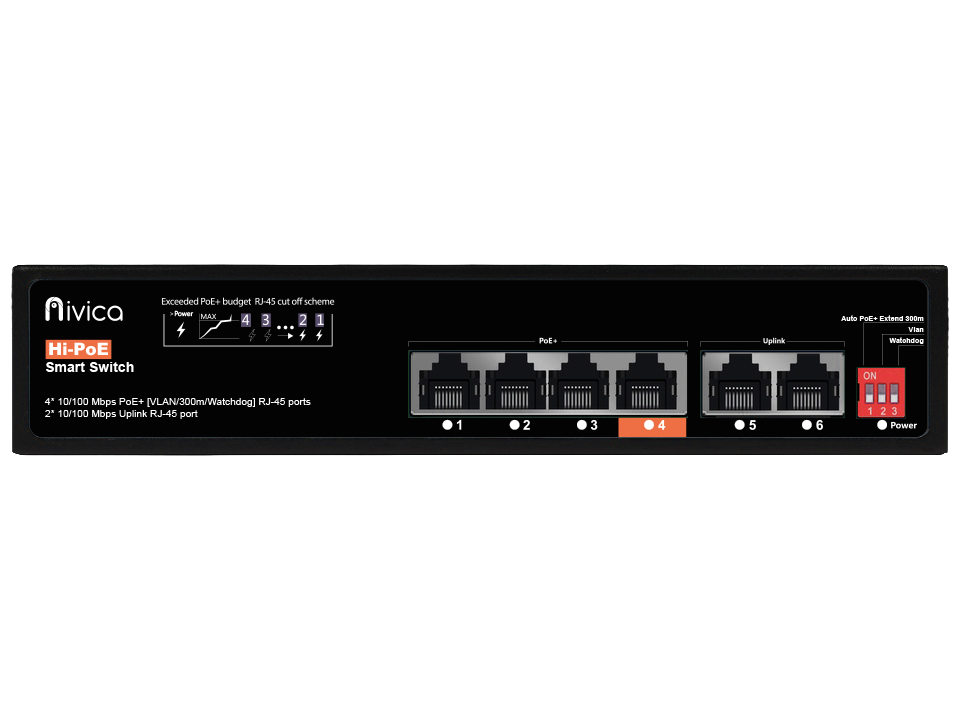

Management of special features and operating modes from the administrator and installer perspective is performed in hardware using a built-in DIP switch, which supports default port prioritization.
The switch activates three key operating modes designated as E, V, and D: mode E (AI Extend) enables transmission over a distance of up to 300 meters with automatic speed change for a single port (limited to 10 Mbps), while other ports maintain 100M/1000M within 100 meters; mode V enables port isolation and VLAN support for ports 1–4; and mode D turns on the AI-PoE Network auto restart mode (PoE Watchdog function), which automatically resolves camera issues and reduces post-sale service costs.
Device operation status is indicated by LED lights for power (PWR in green) and network activity on ports 1–6 (Link/Act in green). High security standards are confirmed by rigorous surge protection norms IEC61000-4-5 (Power: CM±4kV/DM±2kV, Port: ±4kV) and electrostatic discharge resistance IEC61000-4-2 (±8kV contact, ±15kV air), as well as CCC, commercial CE mark, CE/LVD EN60950, FCC Part 15 Class B, and RoHS certifications.
■ DIP switch enabling quick configuration of AI Extend modes (transmission up to 300 meters), VLAN (port isolation), and PoE Watchdog (network auto restart)
■ efficient architecture with a 1.2Gbps switching capacity, 0.89Mpps packet forwarding rate, 2K MAC address table, and 768K buffer memory
■ advanced ESD electrostatic discharge protection (±8kV contact, ±15kV air) and surge/lightning protection (Power: CM±4kV/DM±2kV, Port: ±4kV) with an IP30 enclosure protection rating
■ universal desktop and wall-mounted installation options in a solid enclosure with dimensions of 195*130*40 mm and a weight of less than 0.8 kg.
The Nivica NV-SW-0604P-XE-2FU is an advanced Nivica network switch designed for reliable telecommunications installations and video surveillance systems.
The device features a total of 6 ports, including four 10/100Base-T/TX PoE ports (supporting IEEE802.3, IEEE802.3i, IEEE802.3u, and IEEE802.3x network standards) and 2 RJ45 Uplink ports dedicated to data transmission.
The design is based on high-performance components providing a Switching Capacity of 1.2Gbps, a Forwarding Mode packet rate of 0.89Mpps, a MAC address table capacity of 2K, and a 768K buffer memory.
The Ethernet ports support automatic 10/100Base-T(X) detection and full/half duplex MDI/MDI-X adaptive operation.
From the installer and user's perspective, the device offers high cabling and power supply flexibility.
The switch supports twisted-pair transmission using Cat5 UTP up to 300 meters for the 10BASE-T standard and Cat5 or later UTP up to 100 meters for 100BASE-TX. Power supply pin assignment is defaulted to 1/2(+) and 3/6(-). The power budget per port is up to 30W/15.4W (max/average) for ports 1–3 and up to 60W/15.4W for port 4, with a total power supply budget of 65W (52VAC). The device is powered by a built-in AC100~240V (50-60Hz) power adapter and features low power consumption of less than 2W in standby mode and less than 65W at full load.
Compact dimensions (195*130*40 mm) and a low net weight of under 0.8 kg (gross <1.2 kg) allow for convenient desktop or wall mounting, while a wide operating temperature range from -20 to +55°C (and storage from -40 to +75°C) at 5%~90% RH (non-condensing) ensures stability in diverse environmental conditions.
Management of special features and operating modes from the administrator and installer perspective is performed in hardware using a built-in DIP switch, which supports default port prioritization.
The switch activates three key operating modes designated as E, V, and D: mode E (AI Extend) enables transmission over a distance of up to 300 meters with automatic speed change for a single port (limited to 10 Mbps), while other ports maintain 100M/1000M within 100 meters; mode V enables port isolation and VLAN support for ports 1–4; and mode D turns on the AI-PoE Network auto restart mode (PoE Watchdog function), which automatically resolves camera issues and reduces post-sale service costs.
Device operation status is indicated by LED lights for power (PWR in green) and network activity on ports 1–6 (Link/Act in green). High security standards are confirmed by rigorous surge protection norms IEC61000-4-5 (Power: CM±4kV/DM±2kV, Port: ±4kV) and electrostatic discharge resistance IEC61000-4-2 (±8kV contact, ±15kV air), as well as CCC, commercial CE mark, CE/LVD EN60950, FCC Part 15 Class B, and RoHS certifications.
Technical Parameters
PoE Port
4x 100Mbps (PoE)
PoE Standard
802.3af/at
PoE Budget
65W
RJ45 Uplink Port
2x 100Mbps
Bandwidth
1.2 Gbps
Management
Unmanaged
Power Supply
100-240V AC
Power Consumption
< 3W (bez PoE)
Features
VLAN, AI-PoE, Extend 300m
Enclosure
Desktop
Full specifications
| Model | NV-SW-0604P-XE-2FU |
| Fixed Port | 4*10/100Base-T/TX POE ports (Data/Power) 2*10/100Base/-T/TX Uplink RJ45 ports (Data) |
| POE Port | Port 1-4 support PoE |
| Feature | With the Dial code switch, support port priority by default. E: Al Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters; V: Turn on, 1-4 Port support each port Isolation & VLAN; D: Turn on, 1-4 Port support Al-PoE Network auto restart mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale. |
| Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x. |
| Ethernet Port Feature | 10/100Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive |
| Fiber Port Feature | Store and Forwards |
| Switching Capacity | 1.2Gbps |
| Forwarding Mode | 0.89Mpps |
| MAC | 2K |
| Buffer Memory | 768K |
| Twisted Pair Transmission | 10BASE-T:Cat5 UTP(≤300 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) |
| Power Supply Pin | Default $1/2(+),$ $3/6(-)$; |
| MAX/AVERAGE Power Per Port | Port 1-3 30W/15.4W, Port 4 60W/15.4W |
| Total PWR/Input Voltage | 65W (52VAC) |
| Power Consumption | Standby: <2W;Full load:<65W |
| LED Indicator | Power indicator: PWR (Green); Network indicator: 1-4(Link/Act)/ (Green), 5-6(Link/Act)/ (Green), |
| Power Supply | Build-in power adaptor AC100~240V 50-60Hz, 65W |
| Operation TEMP/ Humidity | -20~+55°C:5%~90% RH non condensing |
| Storage TEMP / Humidity | -40~+75°C;5%~95% RH non condensing |
| Dimension | $195^{*}130^{*}40mm$ |
| Net/Gross Weight | $<0.8~kg/<1.2~kg$ |
| Installation Method | desktop type, wall mounted |
| Protection | IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV |
| Protection level | IP30 |
| Certification | CCC;CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B; RoHS |
