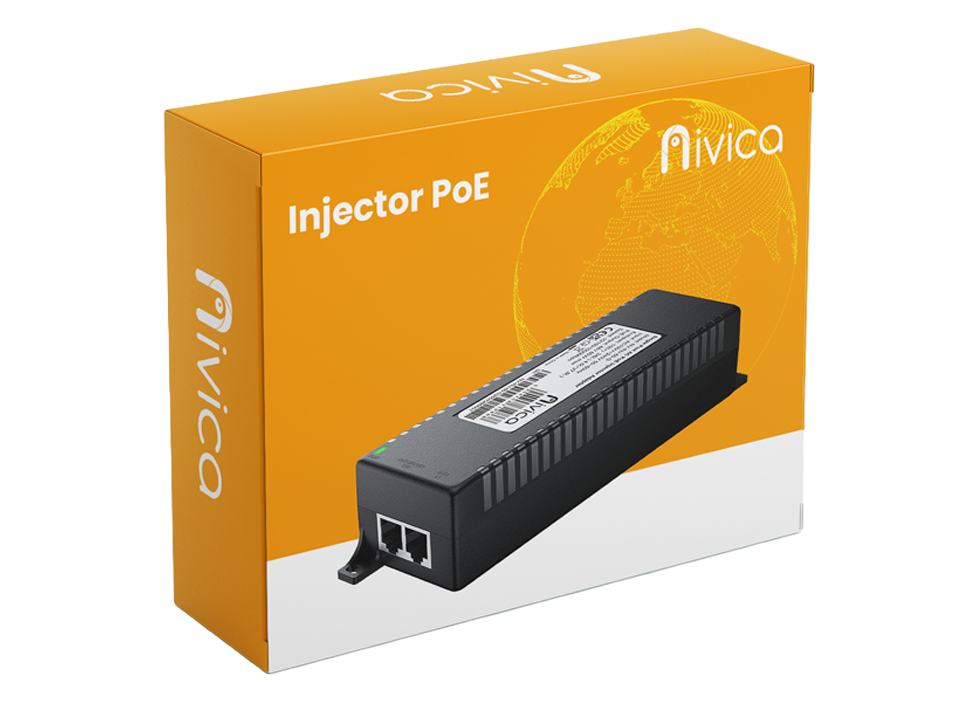

PoE Injector
NV-INJ-60-G
EAN: 5904708319868
Gigabit PoE Power Injector (60W, 802.3bt)
Key Features
■ Support for IEEE 802.3af/at/bt PoE standards
■ Total output power of 60W at a voltage of 52V
■ Working rate of 1000Mbps for 1000BASE-TX networks
■ Interfaces comprising 2 RJ45 ports and an AC input port
■ Designed for operation within an operating temperature range of -20°C to 55°C. The Nivica NV-INJ-60-G is a single-port PoE injector designed to supply power to network devices via twisted-pair copper cable.
The device features a working rate of 1000Mbps and a total power output of 60W at a 52V output voltage.
The power supply architecture defaults to a Mid-span configuration utilizing data line pairs 4/5 and 7/8, with customizable End-span support for spare line pairs 1/2 and 3/6. The injector is equipped with 2 copper cable RJ45 ports and 1 AC input port supporting an input voltage range of 100~240V. It utilizes 1000BASE-TX network medium compatibility with Cat5 or later UTP cabling up to 100 meters.
PoE working status is indicated via dedicated LEDs.
The hardware boasts an MTBF of 100,000 hours and complies with IEC61000-4-2(ESD) network port protection requirements.
The unit incorporates thermal protection activating at temperatures above 100°C. It is rated for an operating humidity of 10%~90%, non-condensing, and a storage temperature range of -20°C to 75°C with a storage humidity of 10%~95%, non-condensing.
Featuring compact dimensions of 108 * 44 * 33 mm and a weight of 0.14kg, the device holds CE mark, commercial, FCC Part 15 Class B, and RoHS certifications.
■ Total output power of 60W at a voltage of 52V
■ Working rate of 1000Mbps for 1000BASE-TX networks
■ Interfaces comprising 2 RJ45 ports and an AC input port
■ Designed for operation within an operating temperature range of -20°C to 55°C. The Nivica NV-INJ-60-G is a single-port PoE injector designed to supply power to network devices via twisted-pair copper cable.
The device features a working rate of 1000Mbps and a total power output of 60W at a 52V output voltage.
The power supply architecture defaults to a Mid-span configuration utilizing data line pairs 4/5 and 7/8, with customizable End-span support for spare line pairs 1/2 and 3/6. The injector is equipped with 2 copper cable RJ45 ports and 1 AC input port supporting an input voltage range of 100~240V. It utilizes 1000BASE-TX network medium compatibility with Cat5 or later UTP cabling up to 100 meters.
PoE working status is indicated via dedicated LEDs.
The hardware boasts an MTBF of 100,000 hours and complies with IEC61000-4-2(ESD) network port protection requirements.
The unit incorporates thermal protection activating at temperatures above 100°C. It is rated for an operating humidity of 10%~90%, non-condensing, and a storage temperature range of -20°C to 75°C with a storage humidity of 10%~95%, non-condensing.
Featuring compact dimensions of 108 * 44 * 33 mm and a weight of 0.14kg, the device holds CE mark, commercial, FCC Part 15 Class B, and RoHS certifications.
Technical Parameters
PoE Port
1x 1Gbps (PoE-out)
PoE Standard
802.3bt (PoE++)
PoE Budget
60W
RJ45 Uplink Port
1x 1Gbps
Power Supply
100-240V AC
Power Consumption
< 65W
Features
Surge Protection
Enclosure
Desktop
Full specifications
| Model | NV-INJ-60-G |
| Product Name | 1000M Single Port PoE Injector 60W |
| Port Description | 2x copper cable RJ45 ports, 1x AC input port. |
| PoE Power Supply | Mid-span: 4/5, 7/8 data line pair (default); End-span: 1/2, 3/6 spare line pair (can be customized) |
| Network Medium | 1000BASE-TX: Cat5 or later UTP (≤100 meters) |
| Thermal Protection | >100°C |
| Performance | Working rate: 1000Mbps Network port protection: meet with IEC61000-4-2(ESD) MTBF: 100,000 hours |
| PoE Standards | IEEE 802.3af/at/bt |
| LEDs Indicator | PoE working status |
| Power | Total power: 60W PoE port power: 60W AC input voltage: 100~240V Output Voltage: 52V |
| Dimensions/Weight | LxWxH: 108 * 44 * 33 mm, 0.14kg |
| Working Environment | Operating Temperature: -20°C ~ 55°C Storage Temperature: -20°C ~ 75°C Working Humidity: 10%~90%, non-condensing Storage Humidity: 10%~95%, non-condensing |
| Certification | CE mark, commercial, FCC Part 15 Class B, RoHS |
