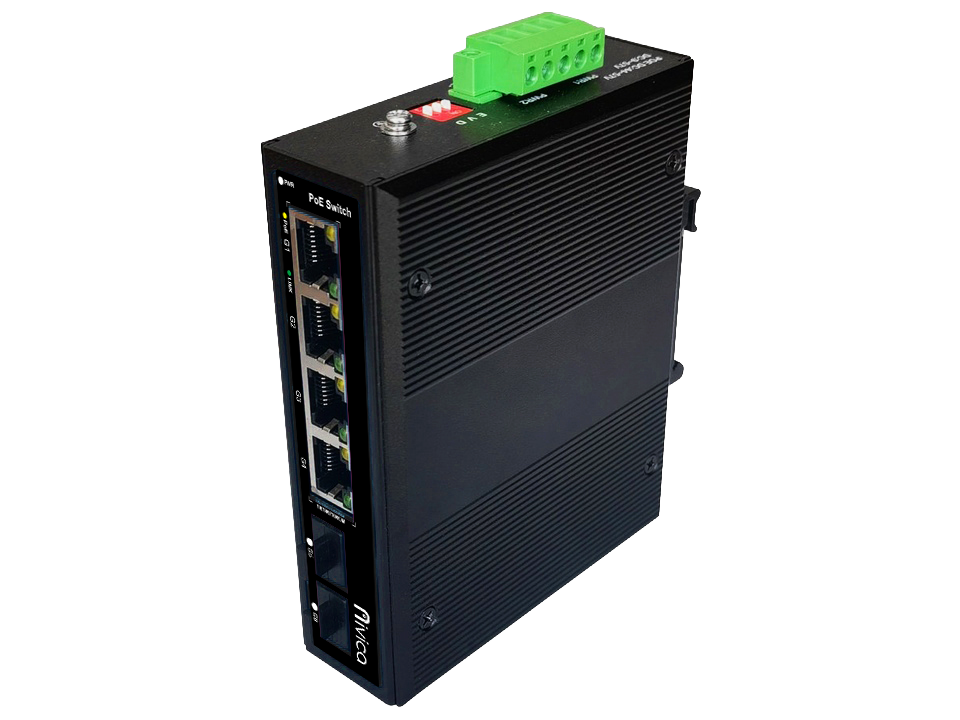

Industrial PoE Switch
NV-ISW-0604PG-XE-2SU
EAN: 5904708319875
Industrial Gigabit PoE switch (4x Gigabit PoE + 2x Gigabit SFP) for DIN rail
Key Features
■ 4 ports of 10/100/1000Base-T PoE and 2 slots of 100/1000Base-X SFP
■ Support for IEEE802.3af/at PoE standards with a maximum power of 30W per port and a total power budget of 60W
■ Non-blocking switching capacity of 12Gbps with a forwarding rate of 8.93Mpps
■ AI Extend function enabling transmission up to 300 meters, along with Port Isolation, VLAN, and PoE Watchdog modes
■ Industrial IP40-rated design supporting operating temperatures from -40 to +75°C. The Nivica NV-ISW-0604PG-XE-2SU is an industrial Ethernet switch designed for reliable network connections in demanding environments.

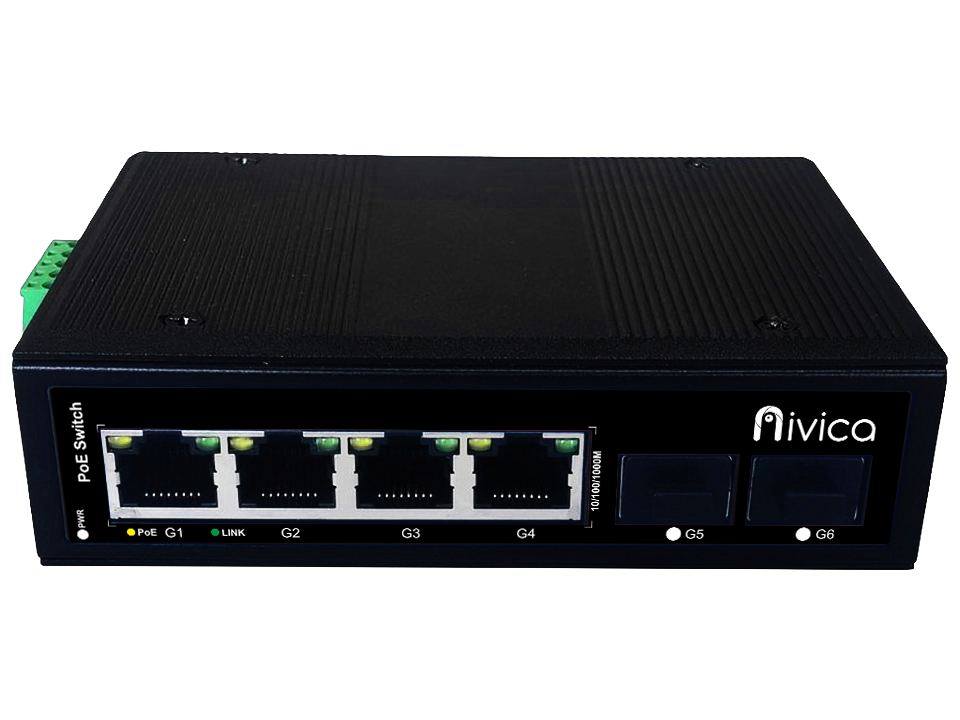

The device features four 10/100/1000Base-T PoE ports (Data/Power) and two 100/1000Base-X SFP slots (Data). The switch architecture is based on the Store and Forward mode, offering a switching capacity of 12Gbps (Non-blocking), a forwarding rate of 8.93Mpps for 64-byte packets, a 4K MAC address table, a 2M buffer memory, and support for 10K Jumbo Frames.

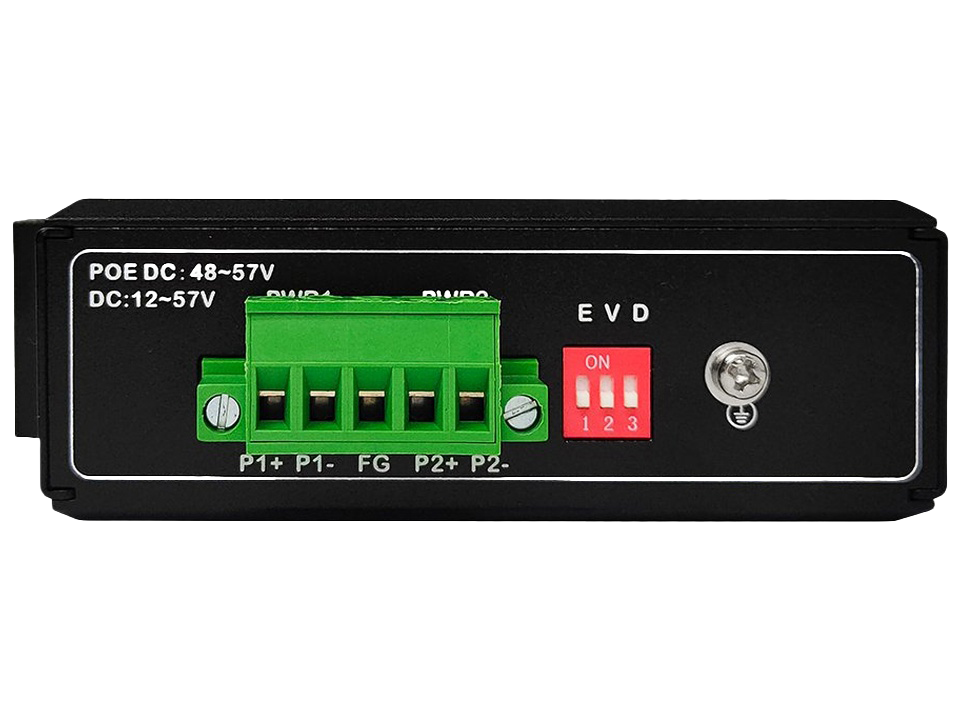

The device design incorporates two sets of redundant DC power interfaces with 5-pin Phoenix terminals, ensuring operational stability under harsh conditions.

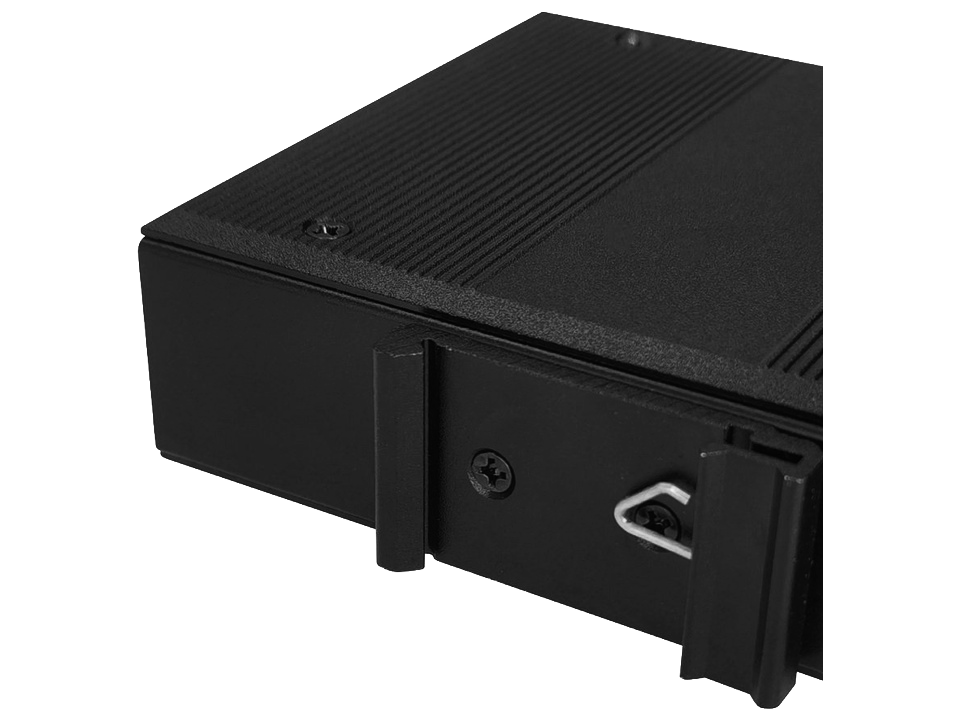

The physical structure, measuring 119 * 100 * 35 mm with a net weight of less than 1.3 kg, features an IP40 protection rating and resistance to lightning surges up to 6KV, as well as high ESD and Surge compliance according to IEC standards.
The device can operate in a wide temperature range from -40 to +75°C with a relative humidity of 5% to 90% non-condensing, making it an ideal solution for industrial applications and video surveillance.

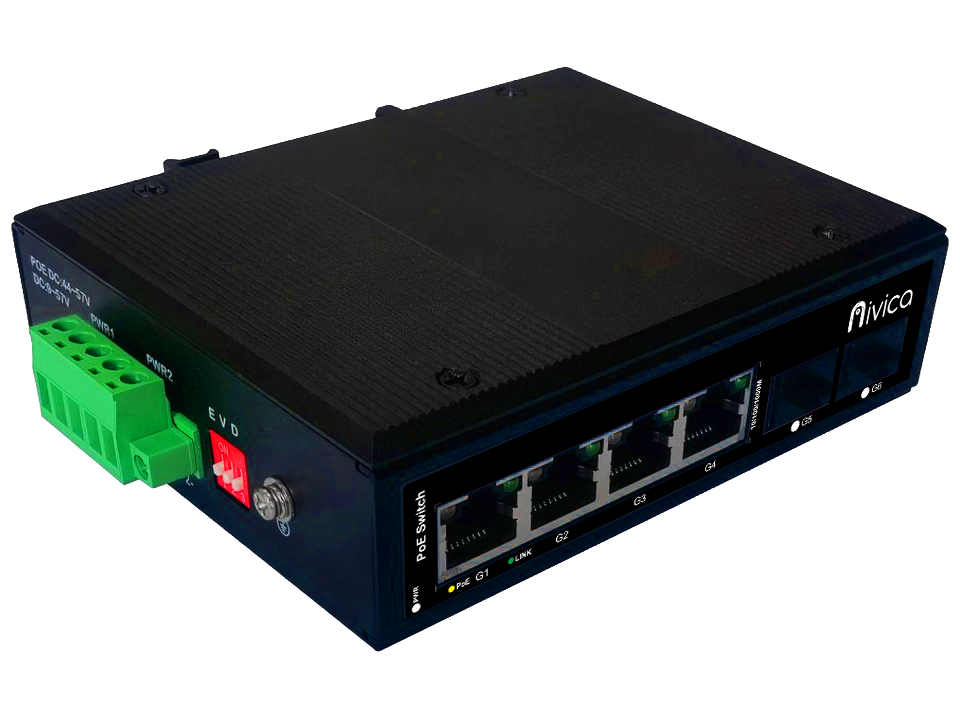

Management of special features is handled via a hardware DIP switch switch located on the housing.
By default, the switch supports port prioritization and offers advanced operating modes such as AI Extend (transmission range up to 300 meters with single port speed limited to 10Mbps), port isolation and VLAN for ports 1-4, and the AI-PoE Network auto restart mode (PoE Watchdog) which automatically resolves issues with connected cameras.
The device is powered by 48-57VDC with reverse polarity protection, consuming less than 3W in standby and a maximum of 60W at full load.
Operating status information is indicated via LED indicators for power, network, and PoE status.
■ Support for IEEE802.3af/at PoE standards with a maximum power of 30W per port and a total power budget of 60W
■ Non-blocking switching capacity of 12Gbps with a forwarding rate of 8.93Mpps
■ AI Extend function enabling transmission up to 300 meters, along with Port Isolation, VLAN, and PoE Watchdog modes
■ Industrial IP40-rated design supporting operating temperatures from -40 to +75°C. The Nivica NV-ISW-0604PG-XE-2SU is an industrial Ethernet switch designed for reliable network connections in demanding environments.
The device features four 10/100/1000Base-T PoE ports (Data/Power) and two 100/1000Base-X SFP slots (Data). The switch architecture is based on the Store and Forward mode, offering a switching capacity of 12Gbps (Non-blocking), a forwarding rate of 8.93Mpps for 64-byte packets, a 4K MAC address table, a 2M buffer memory, and support for 10K Jumbo Frames.
The device design incorporates two sets of redundant DC power interfaces with 5-pin Phoenix terminals, ensuring operational stability under harsh conditions.
The physical structure, measuring 119 * 100 * 35 mm with a net weight of less than 1.3 kg, features an IP40 protection rating and resistance to lightning surges up to 6KV, as well as high ESD and Surge compliance according to IEC standards.
The device can operate in a wide temperature range from -40 to +75°C with a relative humidity of 5% to 90% non-condensing, making it an ideal solution for industrial applications and video surveillance.
Management of special features is handled via a hardware DIP switch switch located on the housing.
By default, the switch supports port prioritization and offers advanced operating modes such as AI Extend (transmission range up to 300 meters with single port speed limited to 10Mbps), port isolation and VLAN for ports 1-4, and the AI-PoE Network auto restart mode (PoE Watchdog) which automatically resolves issues with connected cameras.
The device is powered by 48-57VDC with reverse polarity protection, consuming less than 3W in standby and a maximum of 60W at full load.
Operating status information is indicated via LED indicators for power, network, and PoE status.
Technical Parameters
PoE Port
4x 1Gbps (PoE-out)
PoE Standard
802.3af/at
PoE Budget
120W
SFP / SFP+ Port
2x 1Gbps SFP
Bandwidth
12 Gbps
Management
Unmanaged
Power Supply
48-52V DC
Power Consumption
< 5W (bez PoE)
Features
VLAN, AI-PoE, Extend 300m, DIN Rail
Enclosure
Industrial IP40
Full specifications
| Model | NV-ISW-0604PG-XE-2SU |
| Interface | 4*10/100/1000Base-T POE ports (Data/Power) 2*100/1000Base-X SFP slot ports (Data) 2 set of V+, V- redundant DC power interface (5 Pin Phoenix terminal) |
| PoE Port | Port 1-4 supports POE @ IEEE802.3af/at |
| Network Protocol | IEEE802.3 10BASE-T IEEE802.3u 100BASE-T/TX IEEE802.3ab 1000BASE-T IEEE802.3z 1000BASE-X IEEE802.3u 100BASE-FX IEEE802.3x |
| PoE Standard | IEEE802.3af/at |
| Feature | With the Dial code switch, support port priority by default. E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters; V: Turn on, 1-4 Port support each port Isolation & VLAN; D: Turn on, 1-4 Port support AI-PoE Network auto restart mode (POE Watchdog function), Automatic solve the camera problem & reduce after-sale. |
| SFP Port Characteristic | Gigabit SFP optical fiber interface, default matching optical modules, need to buy separately, (optional order mode / multi-mode, single fiber / double fiber optical module). |
| Forwarding Mode | Store and Forward |
| Switching Capacity | 12Gbps (Non-blocking) |
| Forwarding Rate@64byte | 8.93Mpps |
| MAC | 4K |
| Buffer Memory | 2M |
| Jumbo Frame | 10K |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤100 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5e or later UTP (≤100 meter) |
| Optical Cable | Multimode: 850nm 0~500M, 1310nm 0~2KM; Single mode: 1310nm 0~40KM, 1550nm 0~ 120KM. |
| Power Supply Pin | Default 1/2 (+), 3/6 (-) |
| Working Voltage | 48-57VDC; 5 Pin industrial Phoenix terminal, support anti-reverse protection. |
| Max Power Per Port | 30W; IEEE802.3af/at |
| Total PWR/Input Voltage | 60W (48-57VDC) |
| Power Consumption | Standby: <3W; Full load: <60W |
| LED Indicator | Power indicator: PWR (Green); Network indicator: 1-8(Link/Act)/ (Green), 9(Link/Act)/ (Green), Speed/ (Orange); POE indicator: PoE (Orange) |
| Power Supply | No, optional 48V/60W or 48V/120W industrial power supply |
| Operation TEMP / Humidity | -40~+75°C; 5%~90% RH Non condensing |
| Storage TEMP / Humidity | -40~+85°C; 5%~95% RH Non condensing |

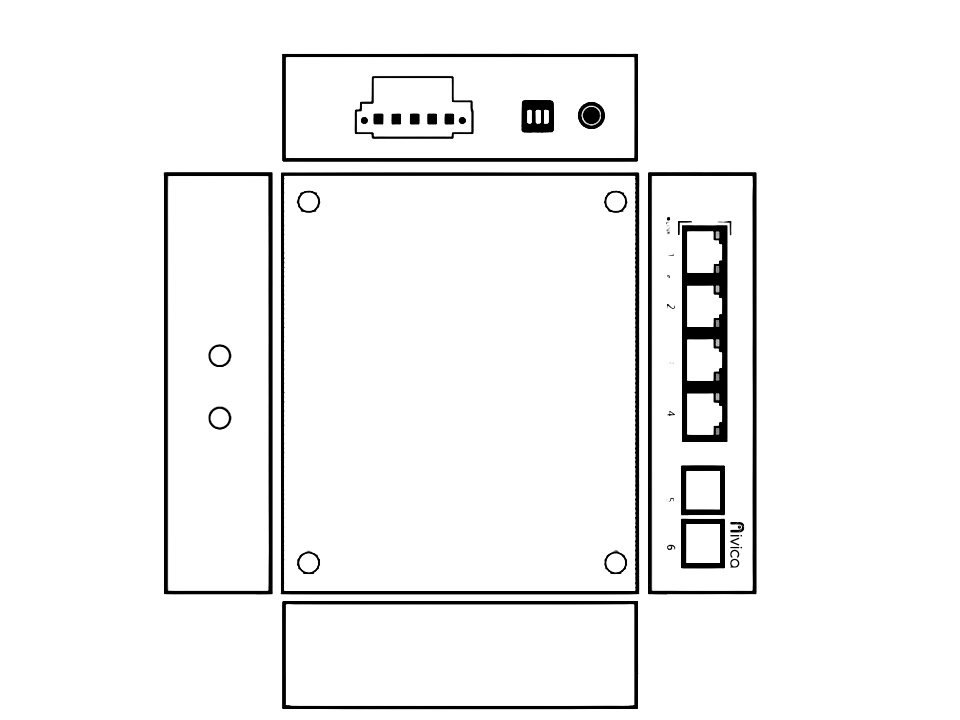

| Dimension | 119 * 100 * 35 mm |
| Net/Gross Weight | <1.3 kg / <1.8 kg |
| Lightning protection / protection level | Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-3(RS):10V/m (80~1000MHz) IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV IEC61000-4-6(radio frequency transmission):10V (150kHz~80MHz) IEC61000-4-8(power frequency magnetic field): 100A/m; 1000A/m, 1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18 (shockwave):CM 2.5kV, DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V, 1s FCC Part 15/CISPR22(EN55022): Class A IEC61000-6-2(Common Industrial Standard) |
| Certification | CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; ROHS; UKCA |
