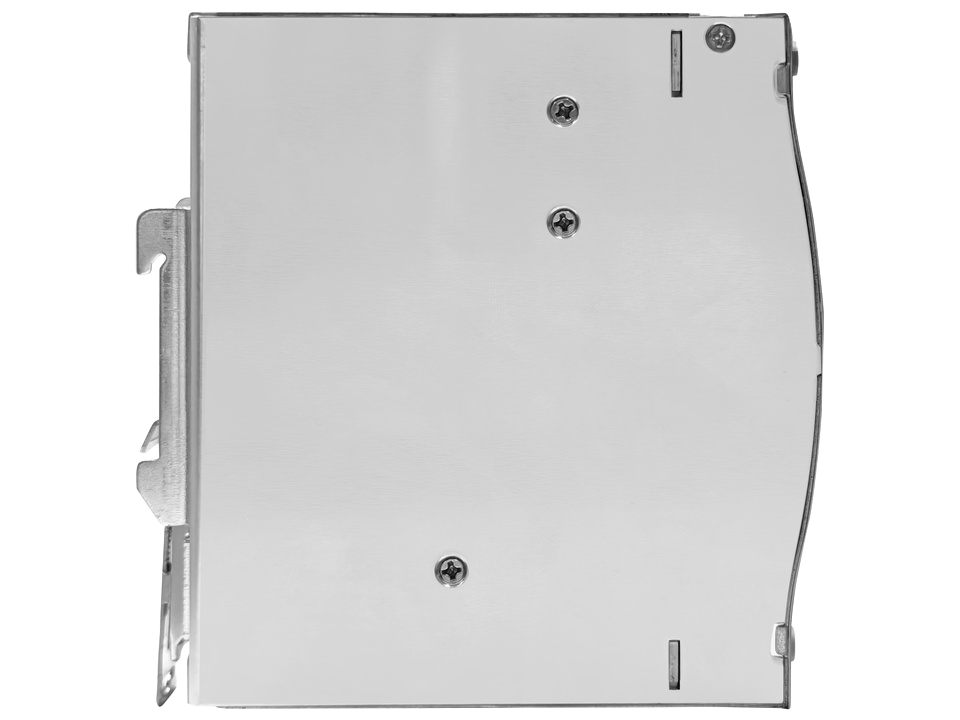

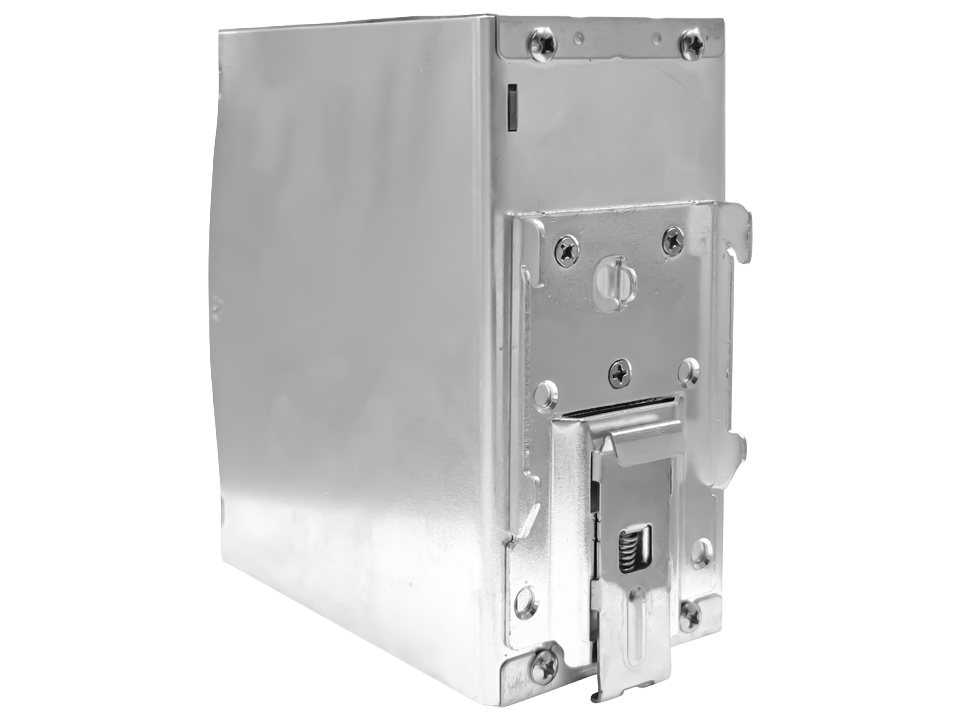

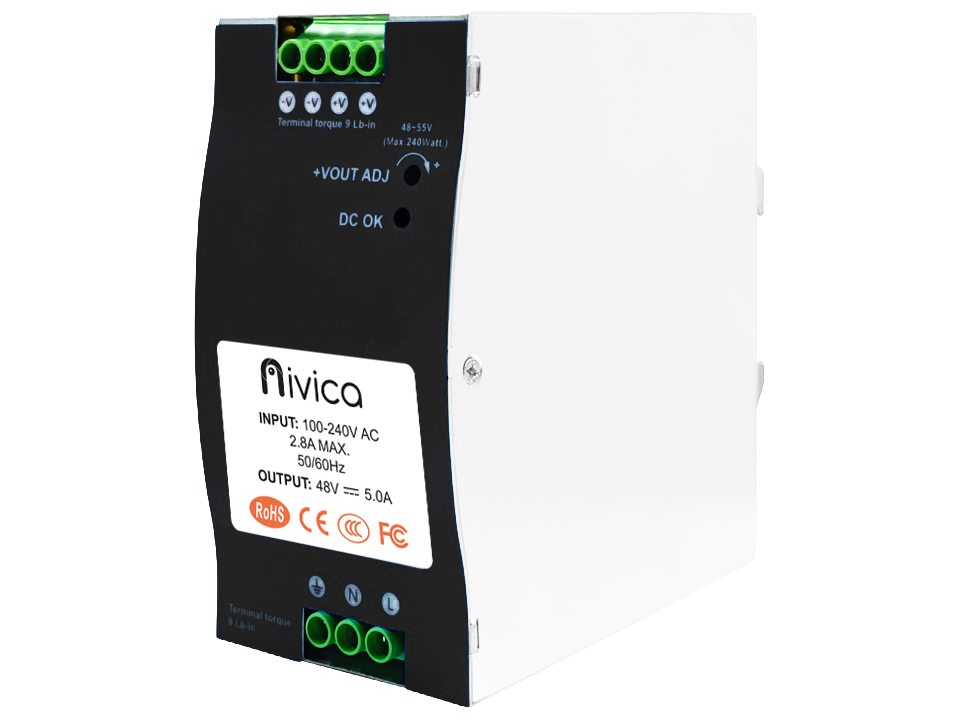

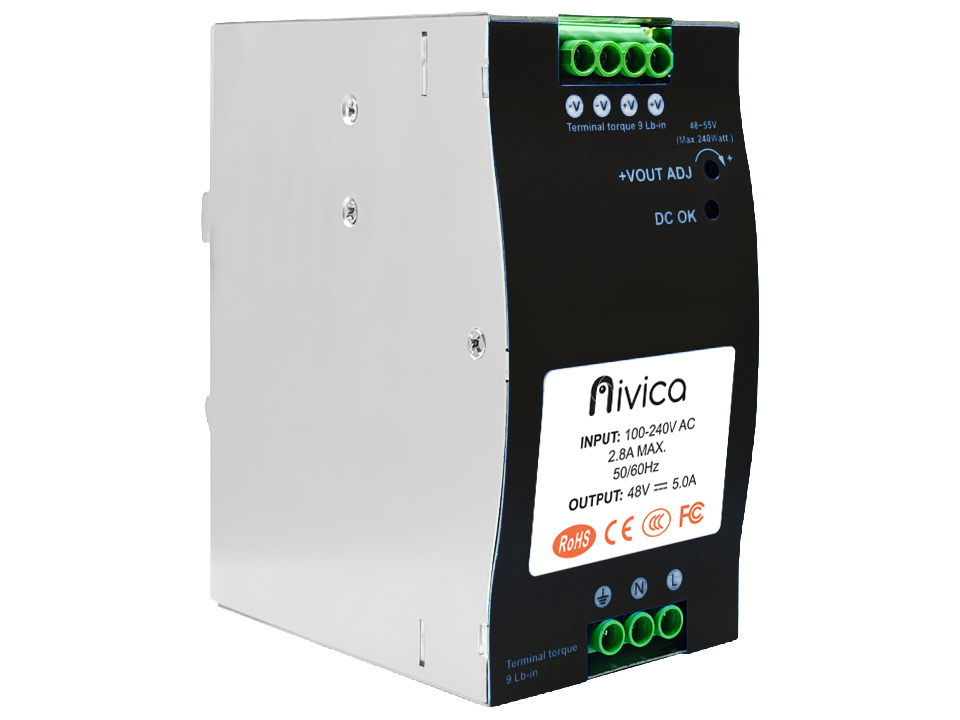

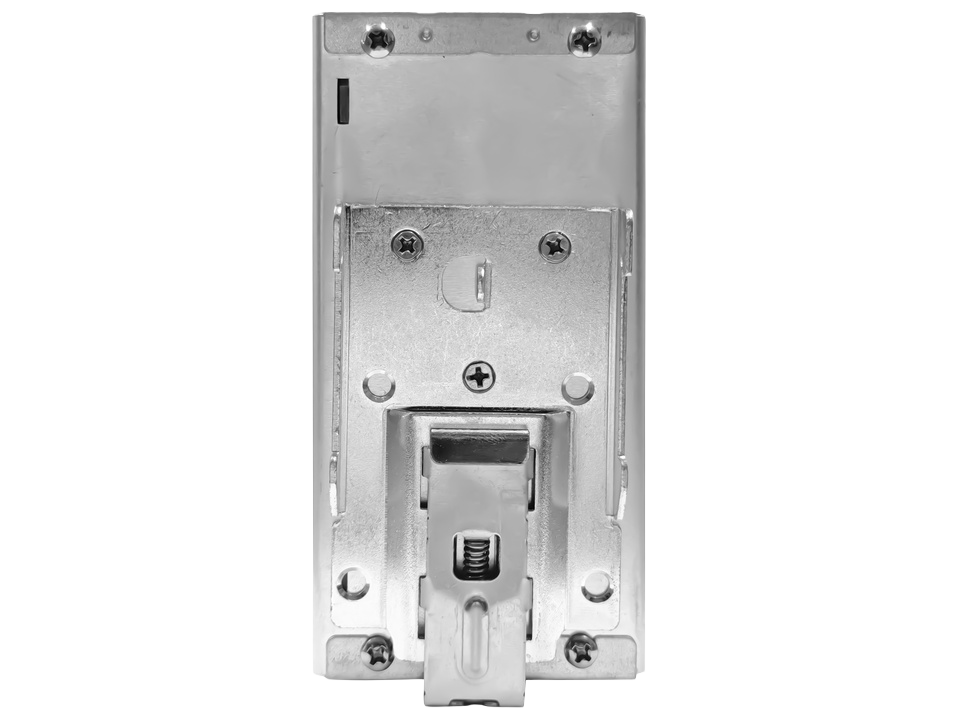

Industrial DIN Power Supply
NV-IPW-48-240
EAN: 5904708319882
Industrial DIN-Rail Power Supply (240W, 48V-57V)
Key Features
■ Wide AC power compatibility range (85~264VAC) and stable DC output with a nominal voltage of 48V.
■ High operating efficiency (Efficiency ≥89%) and a power factor exceeding 0.99 @ 115Vac.
■ Integrated system of advanced protection mechanisms, including Over Voltage, Over Current, and Short Circuit Protection with Hiccup mode.
■ Multifunctionality of connection terminals (TB1 and TB2), supporting the connection of both alternating current (AC/L, AC/N) and direct current (DC -V, DC +V).
■ High environmental resistance: operating temperature range from -30°C to 85°C and the ability to withstand voltage impulses across the I/P-O/P level at 1.5kV. The NV-IPW-48-240 model is a compact power supply measuring 45 x 113 x 124 mm and weighing 1.2 kg, designed to deliver a stable 48V direct current (output range: 0-5A) at a maximum continuous power of 240W. The device features a high power factor (> 0.99 @ 115Vac, > 0.93 @ 230Vac) and is capable of handling input voltages in the range of 85~264VAC at frequencies of 47~63Hz, while guaranteeing a very fast startup time (Output Start Time: < 25ms @ nominal input). Installers will appreciate connection flexibility thanks to two sets of terminals.
The TB1 terminals allow for AC/N or DC - and AC/L or DC + connections, while the TB2 terminals provide dedicated DC OUTPUT -V and DC OUTPUT +V outputs.
The system is equipped with automated protection functions, such as Over Voltage Protection (57-70V) and Over Current Protection (6-7.5A), all implemented via Hiccup mode with automatic self-recovery after fault clearance.
Furthermore, the module features Short Circuit Protection that activates upon connecting a sufficiently large copper cable cross-section.
The device features high operational resilience, ensuring load stability at ±1% and a minimal noise level (Wave And Noise: 150mVp-p). The power supply includes advanced protective mechanisms covering Over Power Protection (288-360W) and general Overload Protection, which guarantee an automatic return to normal operation.
Additionally, the module is resistant to vibrations (10-500Hz) and shock impacts (20G), confirming its reliability in harsh operational environments.
■ High operating efficiency (Efficiency ≥89%) and a power factor exceeding 0.99 @ 115Vac.
■ Integrated system of advanced protection mechanisms, including Over Voltage, Over Current, and Short Circuit Protection with Hiccup mode.
■ Multifunctionality of connection terminals (TB1 and TB2), supporting the connection of both alternating current (AC/L, AC/N) and direct current (DC -V, DC +V).
■ High environmental resistance: operating temperature range from -30°C to 85°C and the ability to withstand voltage impulses across the I/P-O/P level at 1.5kV. The NV-IPW-48-240 model is a compact power supply measuring 45 x 113 x 124 mm and weighing 1.2 kg, designed to deliver a stable 48V direct current (output range: 0-5A) at a maximum continuous power of 240W. The device features a high power factor (> 0.99 @ 115Vac, > 0.93 @ 230Vac) and is capable of handling input voltages in the range of 85~264VAC at frequencies of 47~63Hz, while guaranteeing a very fast startup time (Output Start Time: < 25ms @ nominal input). Installers will appreciate connection flexibility thanks to two sets of terminals.
The TB1 terminals allow for AC/N or DC - and AC/L or DC + connections, while the TB2 terminals provide dedicated DC OUTPUT -V and DC OUTPUT +V outputs.
The system is equipped with automated protection functions, such as Over Voltage Protection (57-70V) and Over Current Protection (6-7.5A), all implemented via Hiccup mode with automatic self-recovery after fault clearance.
Furthermore, the module features Short Circuit Protection that activates upon connecting a sufficiently large copper cable cross-section.
The device features high operational resilience, ensuring load stability at ±1% and a minimal noise level (Wave And Noise: 150mVp-p). The power supply includes advanced protective mechanisms covering Over Power Protection (288-360W) and general Overload Protection, which guarantee an automatic return to normal operation.
Additionally, the module is resistant to vibrations (10-500Hz) and shock impacts (20G), confirming its reliability in harsh operational environments.
Technical Parameters
Power Supply
100-240V AC
Power Consumption
240W (48V / 5A)
Enclosure
Desktop
Full specifications
| Model | EW-DR-240W-48 |
| DC Output Voltage, Current | 48V, 0-5A |
| Rate Power (max) | 240W |
| Wave And Noise | 150mVp-p |
| Inlet Wire Stability | ±0.5% |
| Load Stability | ±1% |
| Adjustable Range For DC Voltage | ±10% |
| Output Start Time | < 25ms @ nominal input (100% load) |
| Output Hold Time | > 20ms @ 115Vac, > 115 ms @ 230Vac (100% load) |
| Input Voltage Range | 85~264VAC / 120~370VDC |
| Frequency Range | 47~63Hz |
| Efficiency | ≥89% |
| Input Current | < 4.40A @ 115Vac, < 2.20A @ 230Vac |
| Inrush Starting Current | < 35A @ 115Vac & 230Vac |
| Power Factor | > 0.99 @ 115Vac, > 0.93 @ 230Vac |
| Over Power Protection | 288-360W. Protection mode: Hiccup mode, Self-recovery after over-power released. |
| Over Voltage Protection | 57-70V. Hiccup mode. Output recovery to normal after voltage. |
| Over Current Protection | 6-7.5A. Protection mode: Hiccup mode, Self-recovery after over-current released. |
| Short Circuit Protection | It achieves the long-term short circuit by connecting a sufficient cross-sectional area copper cable (Length at 15cm±5cm) with power output port. Self-recovery to normal after removing the short circuit. |
| Overload Protection | 105%~150% cut off the output, automatic recovery. |
| Other voltage protection | 120%~140% shut down O/P voltage, re-power on to recover. |
| Operation Temperature and Humidity | -30°C~85°C; 20%~95%RH non-condensing. |
| Storage Temperature and Humidity | -40°C~85°C; 10%~95%RH non-condensing. |
| Vibration | Frequency range: 10-500Hz; Acceleration: 2G; Each sweep cycle 10min; Six sweeps along the X, Y, and Z axis. |
| Surge (Shock) | Acceleration: 20G; Duration time: 11mS; Three shocks along X, Y and Z axis. |
| Altitude | 2000m |

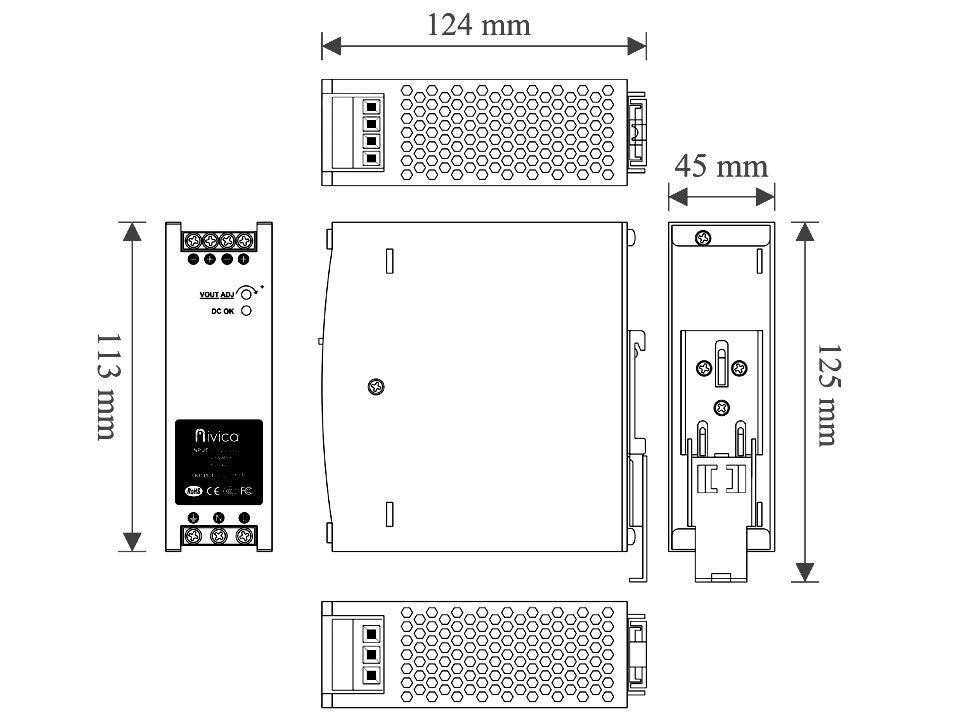

| Dimension | 45 x 113 x 124 mm |
| Weight | 1.2KG |
| Setup, rise, hold up time | 1500ms, 100ms / 230VAC at full load. |
| Withstand voltage | I/P-O/P: 1.5kV I/P-FG: 1.5kV O/P-FG: 0.5kV 1minute. |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG: 500VDC/100MΩ. |
| Smart flow control | -10°C~+50°C |
| Terminal Pin No. Assignment (TB1) | 1: FGO 2: AC/N Or DC - 3: AC/L Or DC + |
| Terminal Pin No. Assignment (TB2) | 1,2: DC OUTPUT -V 3,4: DC OUTPUT +V |
