NV-AP7

■ Support for radio standards in the 2.4GHz (IEEE 802.11 b/g/n/ax/be) and 5GHz (IEEE 802.11 a/n/ac/ax/be) bands
■ Operation in three working modes: Gateway Mode, Repeater Mode, and AP Mode
■ Network interfaces including one 1*10/100/1000/2500Mbps WAN port with 48V POE support and one 1*10/100/1000Mbps LAN port
■ Support for a maximum of 128 concurrent users
■ Advanced wireless functions including seamless roaming, multiple SSID, and comprehensive Wi-Fi security protocols.

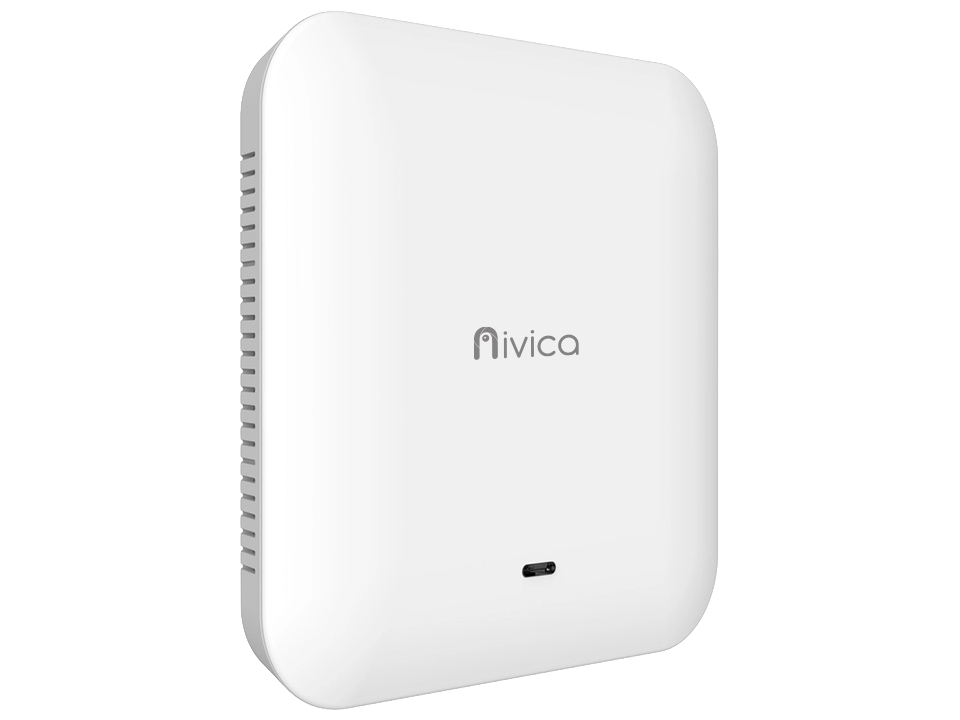

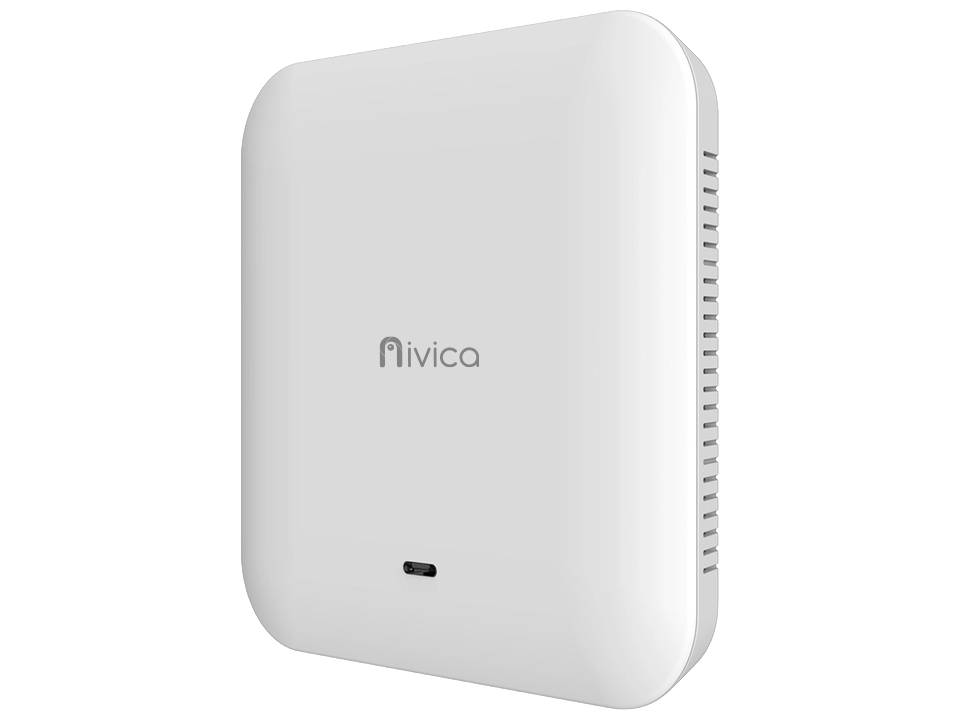

The Nivica NV-AP7 is based on a hardware configuration featuring the main chip IPQ5312+QCN6422+QCA8081+QCA8337, 512MB DDR4 memory, and 128MB Nand Flash.

The device operates within the frequency ranges of 2.4GHz~2.484GHz and 5.150GHz~5.825GHz, utilizing 2x4dBi Dual Band antenna configurations for both bands.

It ensures stable wireless transmission with a maximum theoretical data rate of up to 688Mbps on the 2.4GHz band and up to 2882Mbps on the 5GHz band while maintaining strict transmission power and receiving sensitivity parameters.

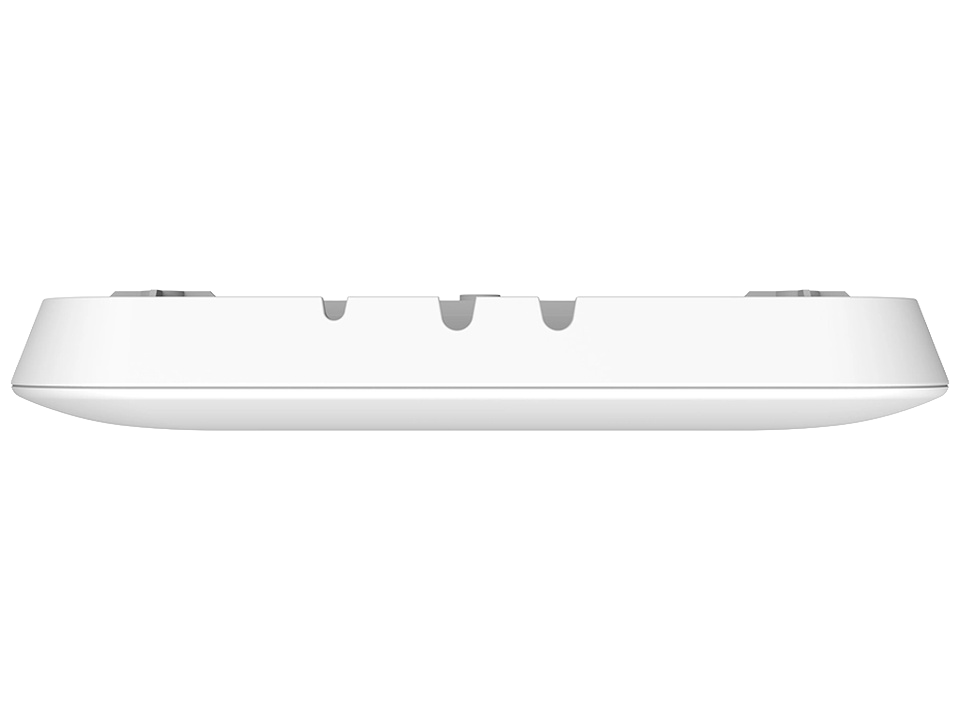

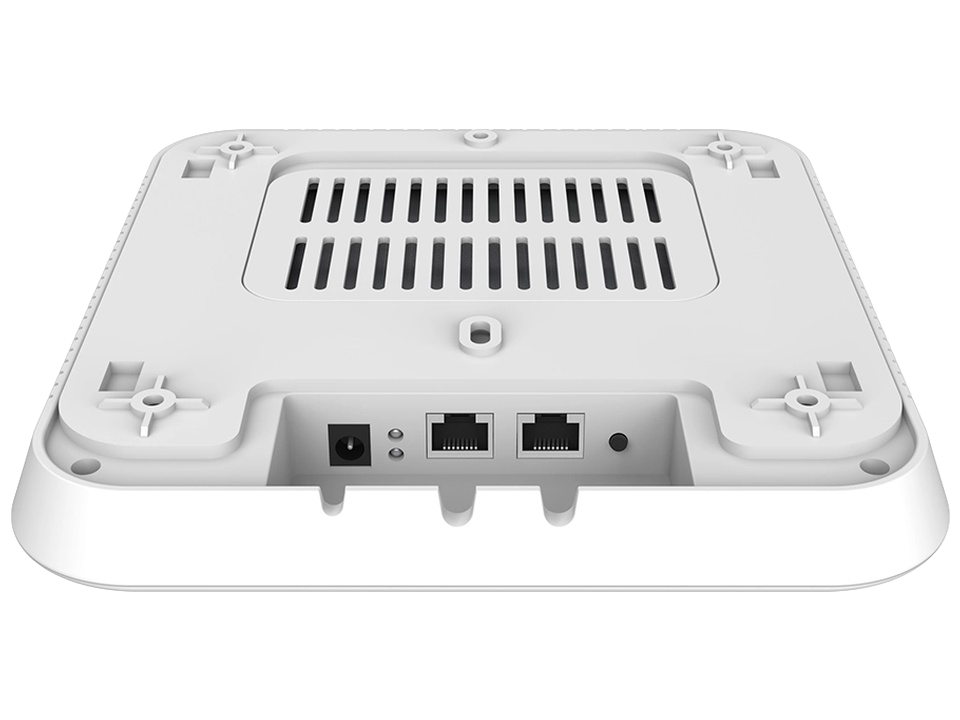

The device is equipped with a physical 1*10/100/1000/2500Mbps WAN port supporting 48V POE power and a 1*10/100/1000Mbps LAN port.

The NV-AP7 supports up to 128 simultaneous users, offering functions such as seamless roaming, SSID hiding, client isolation, and 5G Prior.

Thanks to its versatile working modes – Gateway, Repeater, and AP – the access point flexibly adapts to network architectures, enabling the configuration of up to 4 SSIDs for the 2.4GHz band and 4 SSIDs for the 5.8GHz band.

Device management is handled via WEB remote management interface, which allows for monitoring system status, wireless status, and real-time traffic, as well as performing configuration backups and restores.

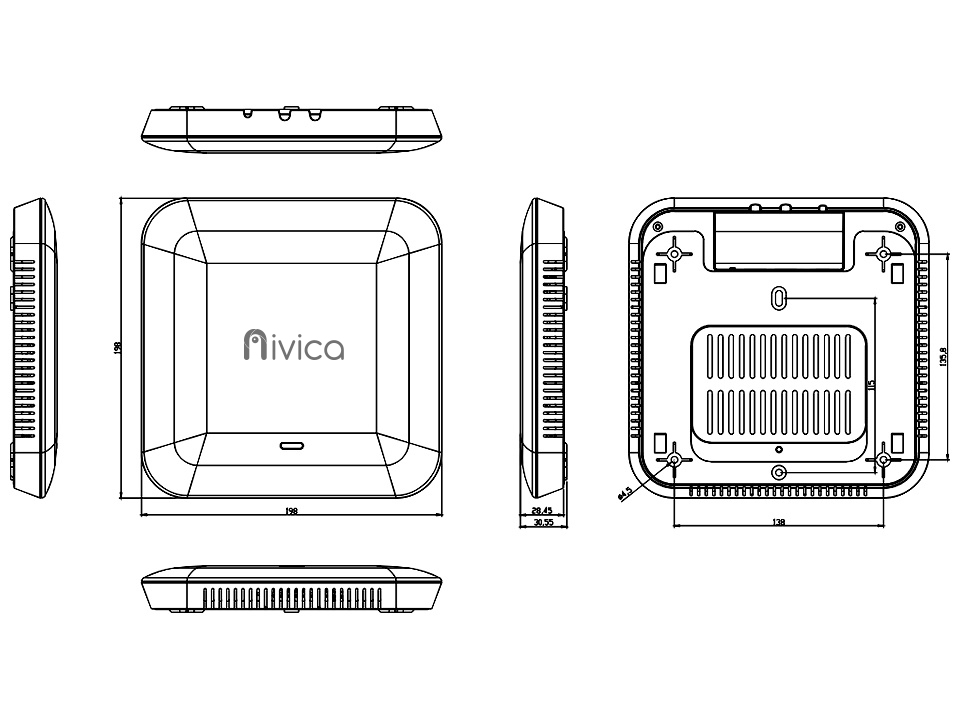

The NV-AP7 can be powered via POE 802.3at or DC 12V2A, with a maximum power consumption of less than 24W. The enclosure, measuring 304mm × 181mm × 88mm and weighing 1.6kg, is designed for operation in temperatures ranging from -20°C to 55°C and humidity levels from 10% to 90% (non-condensing).
