NV-AP6-O

■ Support for the Wi-Fi 6 (802.11ax) standard with 2T2R MIMO technology across 2.4 GHz and 5 GHz bands
■ Two operating modes: Access Point (AP) mode and Gateway mode
■ 10/100/1000/2500 Mbps WAN port with 48V PoE support
■ Multiple SSID support (4 per band) and seamless roaming support
■ Maximum capacity of up to 128 simultaneous users.

Nivica NV-AP6-O is an advanced access point built on the MT7981B+MT7976DA+GPY211 processor architecture, backed by 256MB of DDR3 memory and 16MB of SPI NOR Flash memory.

The device operates across frequency ranges of 2.4GHz ~ 2.484GHz and 5.150GHz ~ 5.825GHz, utilizing antennas with a 4*4dBi configuration.

In the 2.4 GHz band, it supports 802.11b/g/n/ax standards with speeds up to 574 Mbps, while in the 5 GHz band, it supports 802.11a/n/ac/ax standards, providing a theoretical throughput of up to 2402 Mbps.

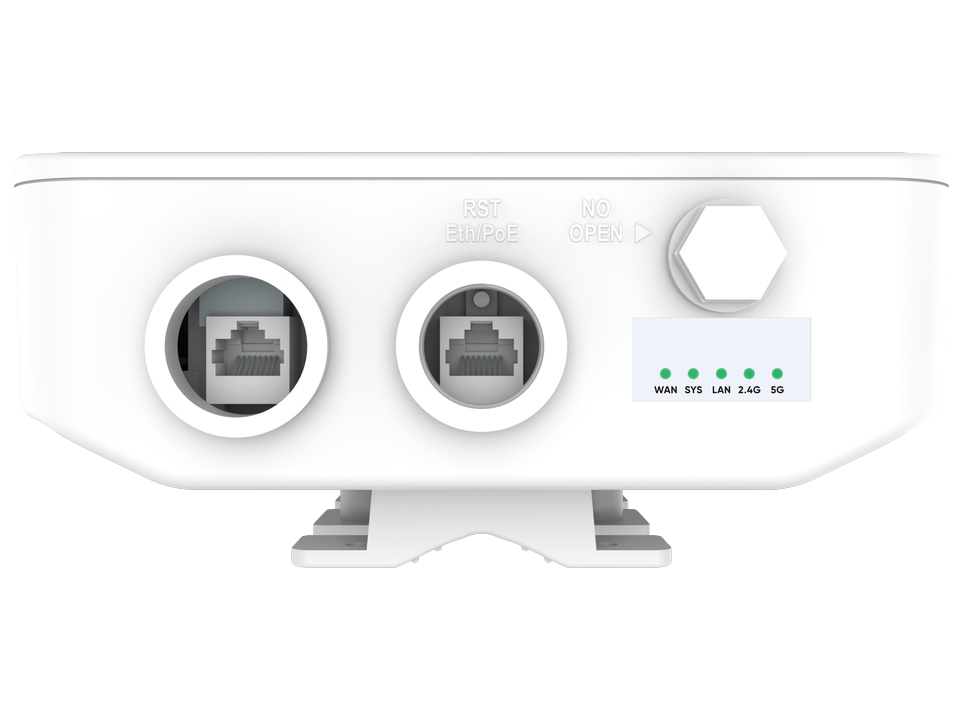

The device hardware features a 10/100/1000/2500 Mbps WAN interface supporting 48V PoE and a 10/100/1000 Mbps LAN port.

It offers advanced wireless functions, including SSID hiding, client isolation, MAC address filtering, and 5G Prior support for faster Ethernet.

Data transmission security is ensured by broad encryption options, such as Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, and WPA3, while networking capabilities are complemented by VLAN settings and cloud access support in gateway mode.

Device management is handled via WEB remote management interface, enabling monitoring of system status, wireless status, and real-time traffic.

Administrators have access to tools for configuration backup and restoration, Wi-Fi scheduling for energy saving, adjustable RF power, and device reboot or factory reset functions.

The device is powered via PoE 802.3at with a maximum power consumption of less than 18W, and its chassis measuring 304mm × 181mm × 88mm with a weight of less than 1.6kg is designed to operate within a temperature range of -20°C to 55°C.
